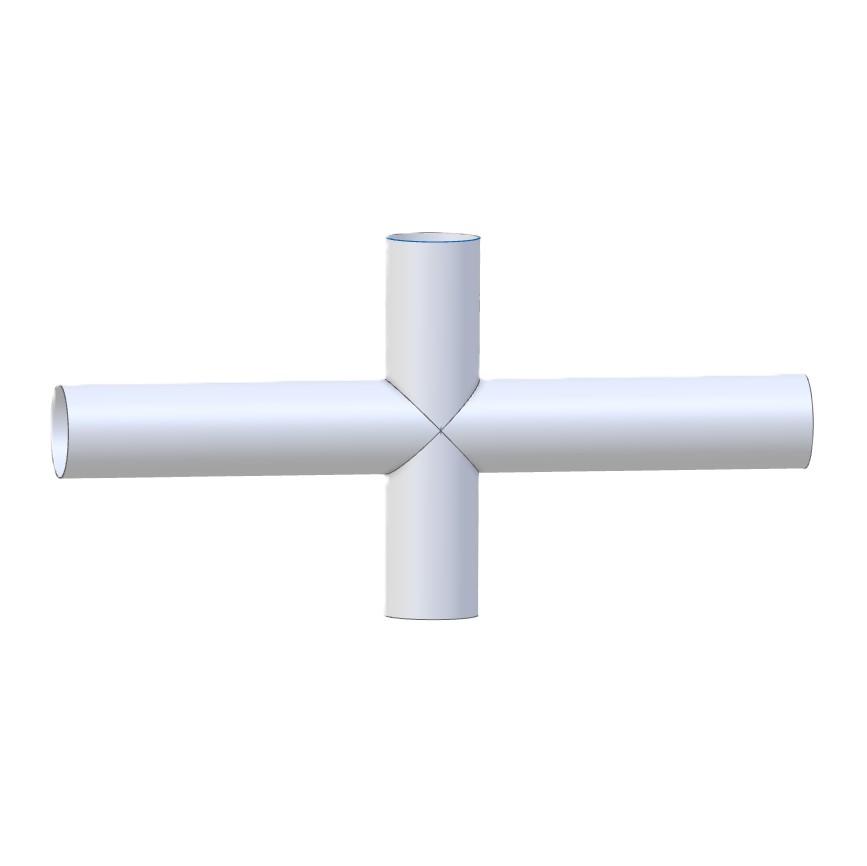

SRS Connection piece Double. 180°-100-100-70-90°
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 148101007

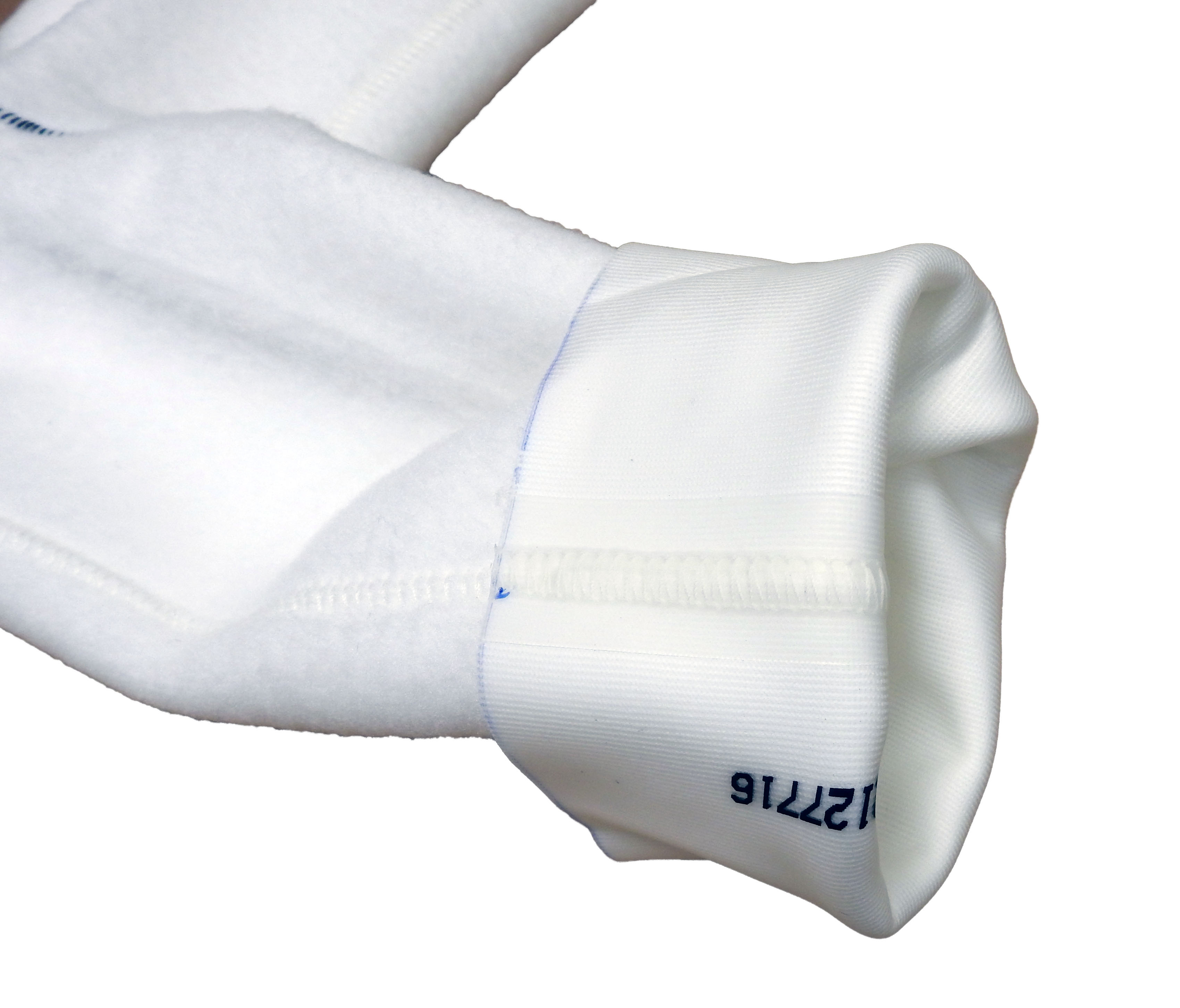

Connection piece made of felt material with taped seam to create a tight connection between main line and the lateral.
18% undersize ensures good fit in all situations.
Connection angle between laterals: 180°.
Main line dimension: 100mm.
Lateral 1 dimension: 100mm.
Lateral 2 dimension: 70mm.
Connection angle laterals: 90°.
Material: Polyester fiber fleece with PUR coating.
Thickness dry felt: approx. 3,3mm.
Thickness hardened: approx. 2,8mm.
Length main line: approx. 600mm.
Length of laterals: approx. 400mm.
Price per piece.
Discount ladder.
5-9 pcs. 10%
10-xx pcs. 20%.
