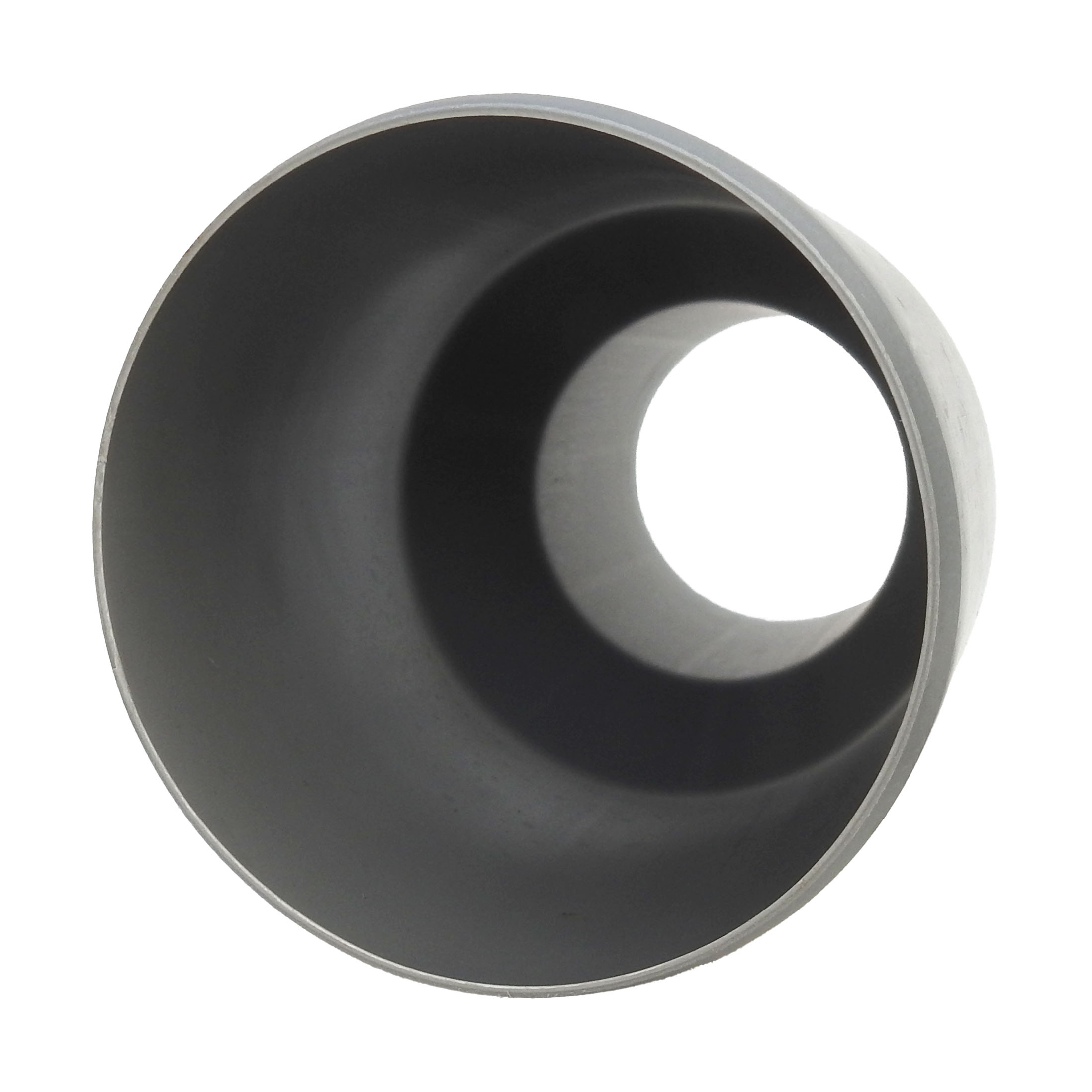

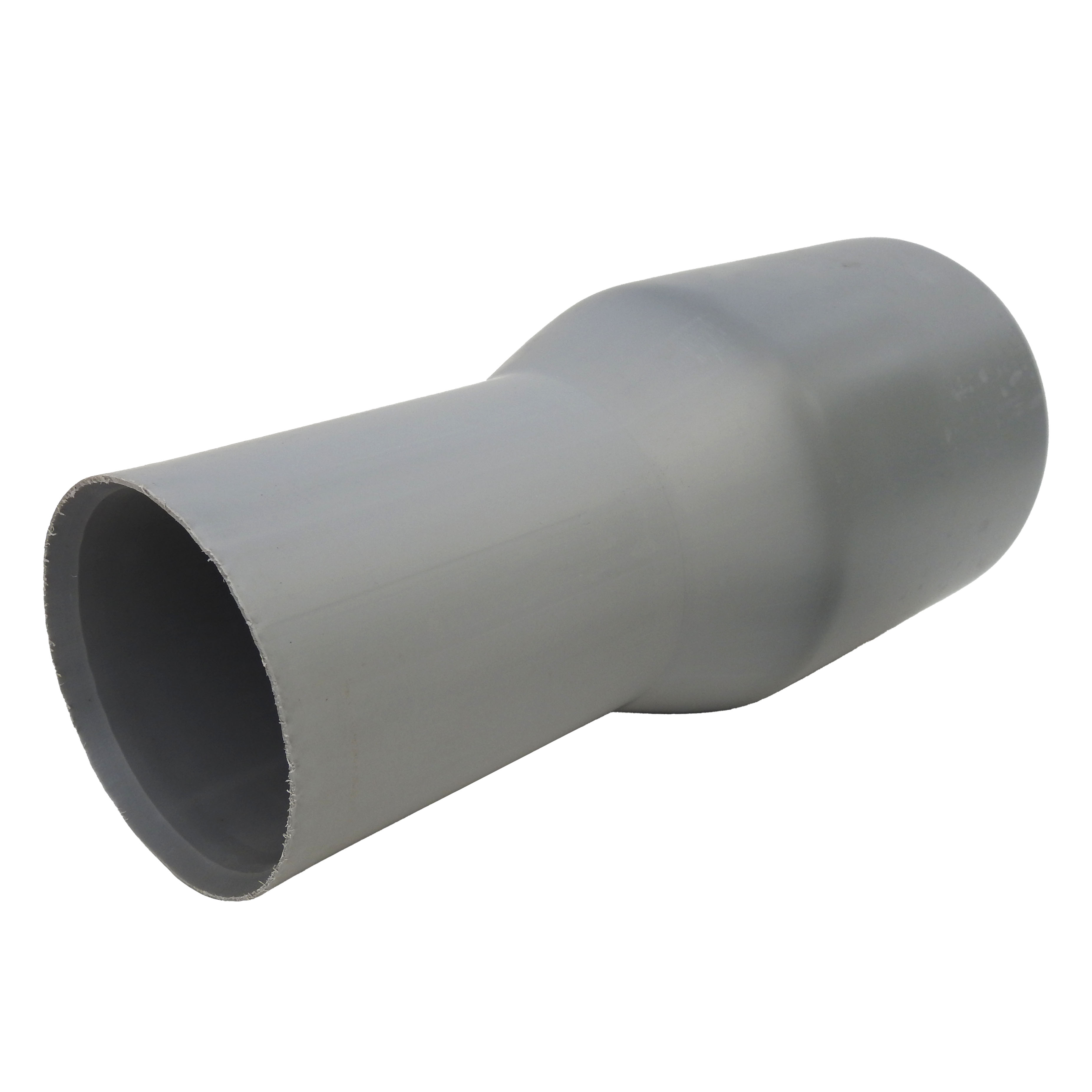

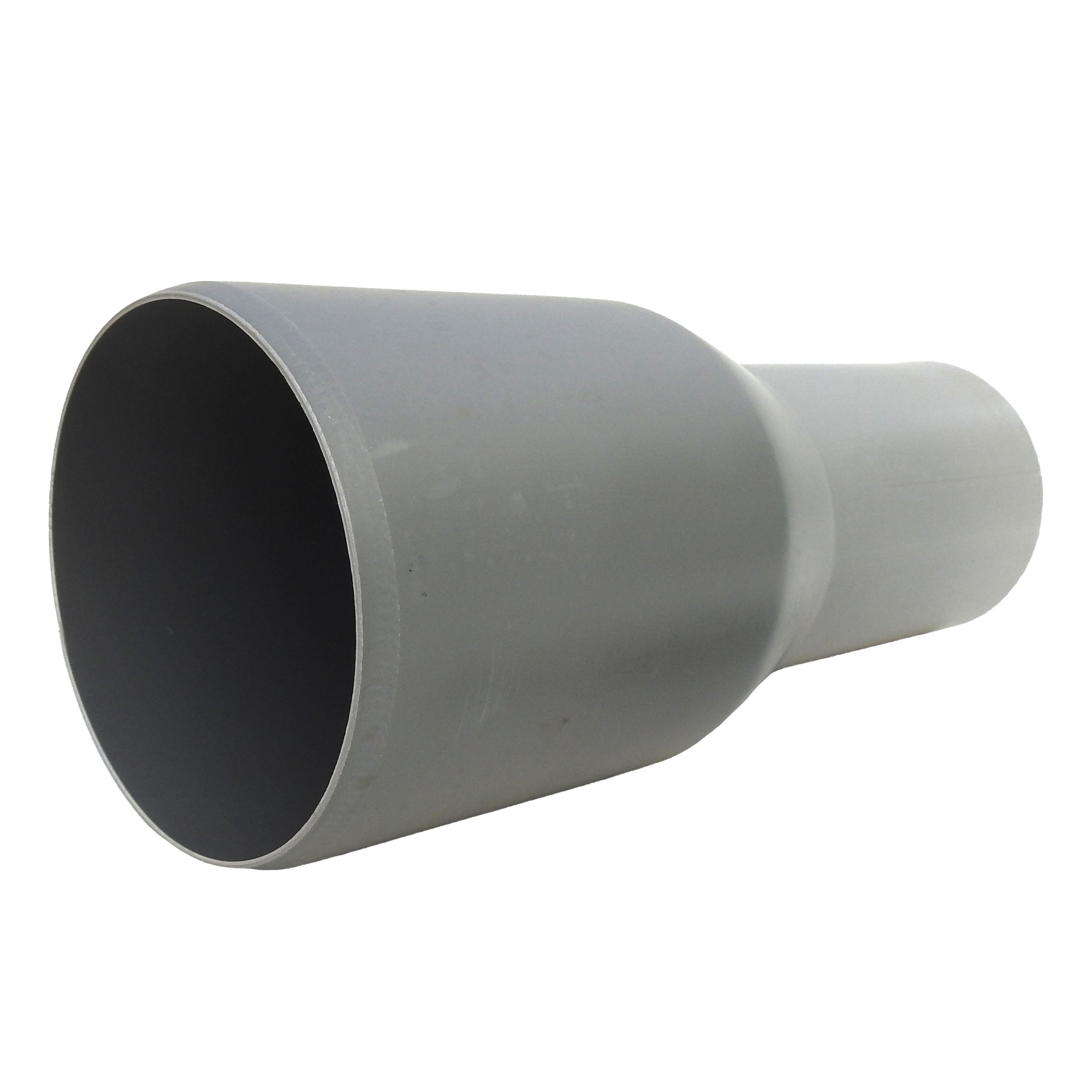

Expansion joint DN110/80mm.
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 470110080
Expansion joint DN110/80mm. is used to create a secure connection to the relined pipeline.
The expansion joint is mounted inside the relined pipe and expanded with a hot air gun to form a tight connection with minimal impact on the original diameter.
The expansion joint can be installed both with or against the direction of flow. Thanks to the beveled edge, a smooth transition is formed.
The expansion joint can be used as a transition between existing concrete, ceramic, cast iron or relined pipes and new plastic pipes.
Diameter: 110mm.
Diameter expansion end: 80mm.
Length: 250mm.
Length expansion end: 100mm.
Material: PP plastic, gray

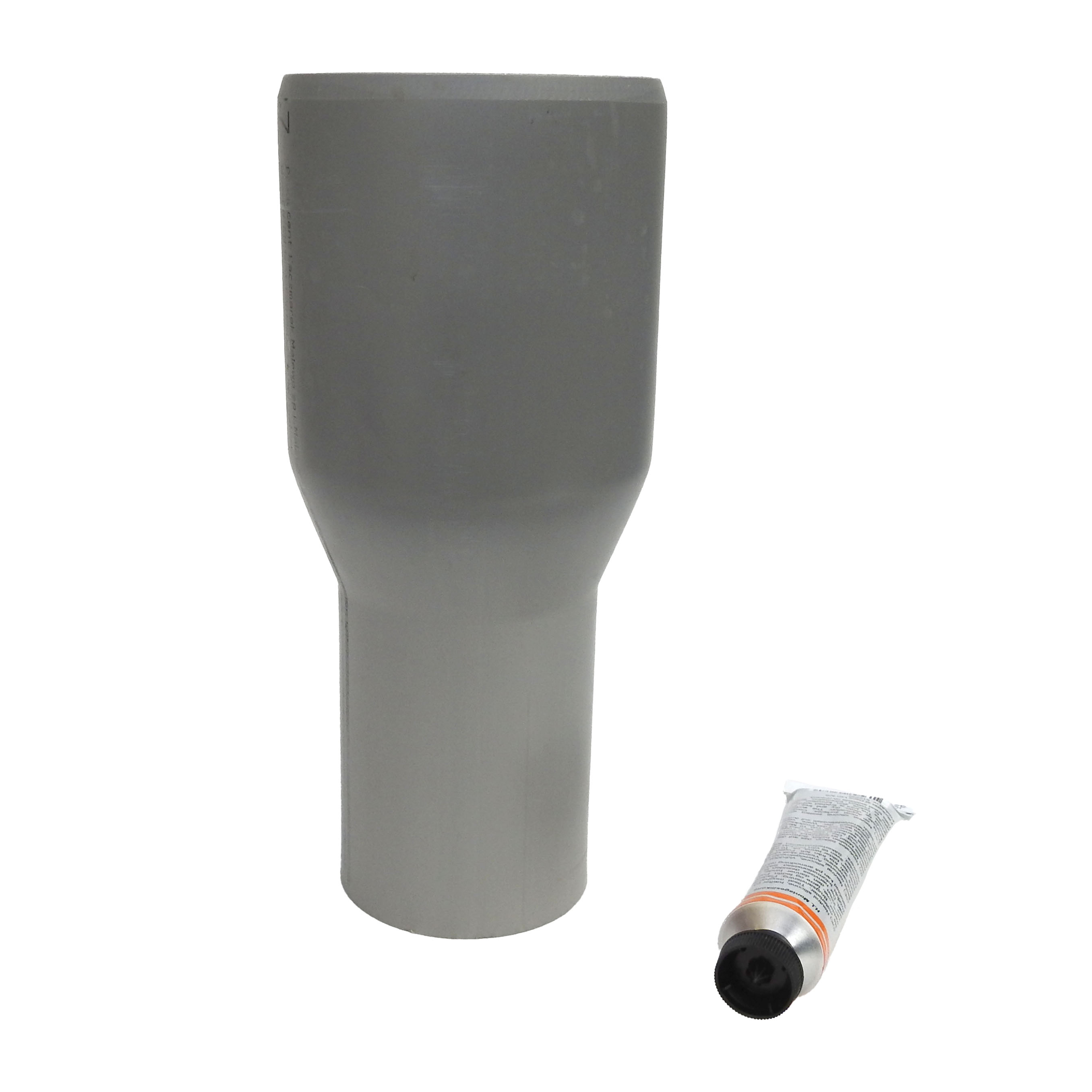

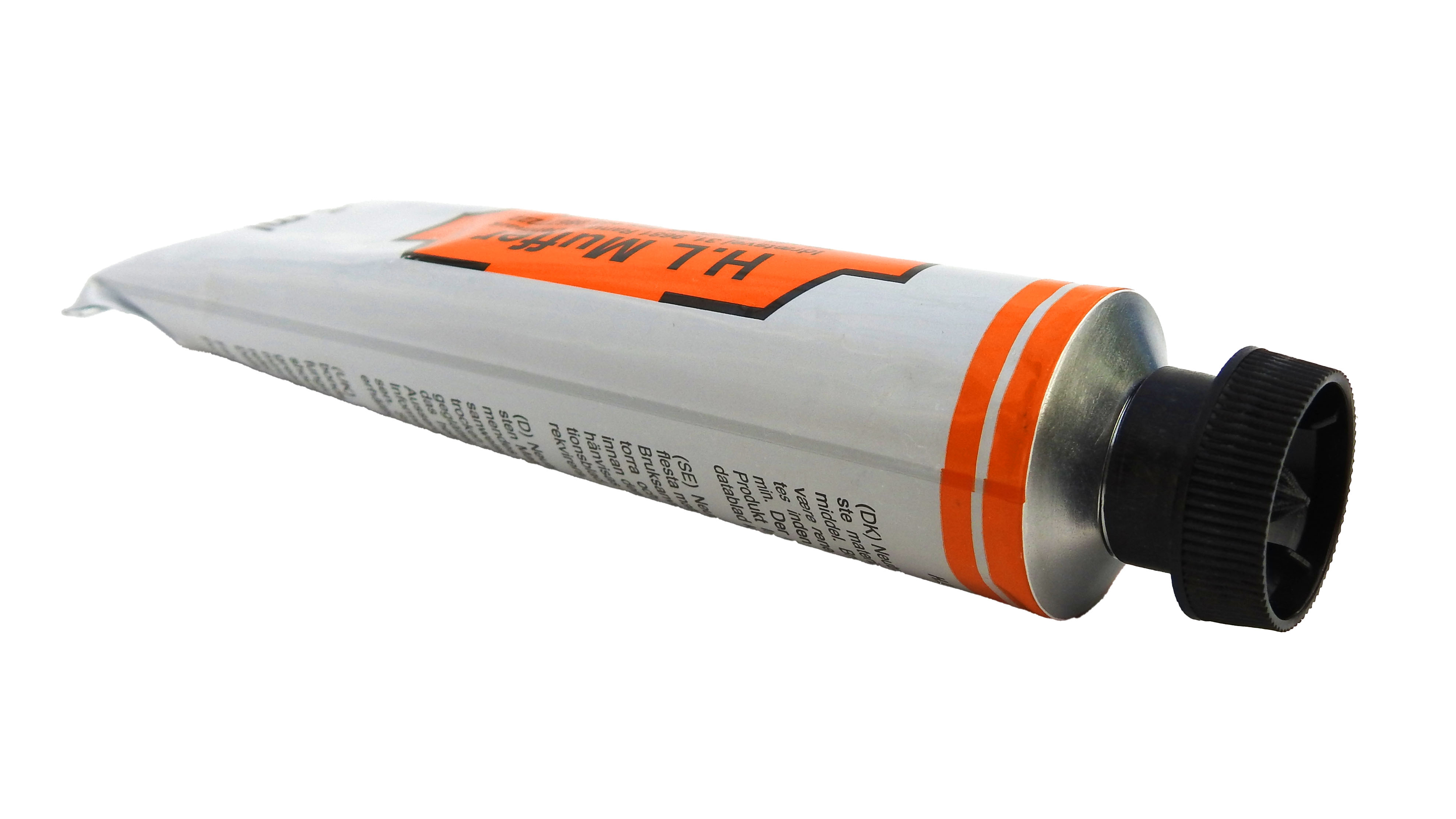

Supplied with sealing compound (silicone) and assembly instructions.
Price per piece.
The expansion joint is mounted inside the relined pipe and expanded with a hot air gun to form a tight connection with minimal impact on the original diameter.
The expansion joint can be installed both with or against the direction of flow. Thanks to the beveled edge, a smooth transition is formed.
The expansion joint can be used as a transition between existing concrete, ceramic, cast iron or relined pipes and new plastic pipes.
Diameter: 110mm.
Diameter expansion end: 80mm.
Length: 250mm.
Length expansion end: 100mm.
Material: PP plastic, gray
Supplied with sealing compound (silicone) and assembly instructions.
Price per piece.
