Expansion joint DN160/132mm.
- Do you need more information about this product? We are happy to answer your questions.
Description
Article no.: 470160132

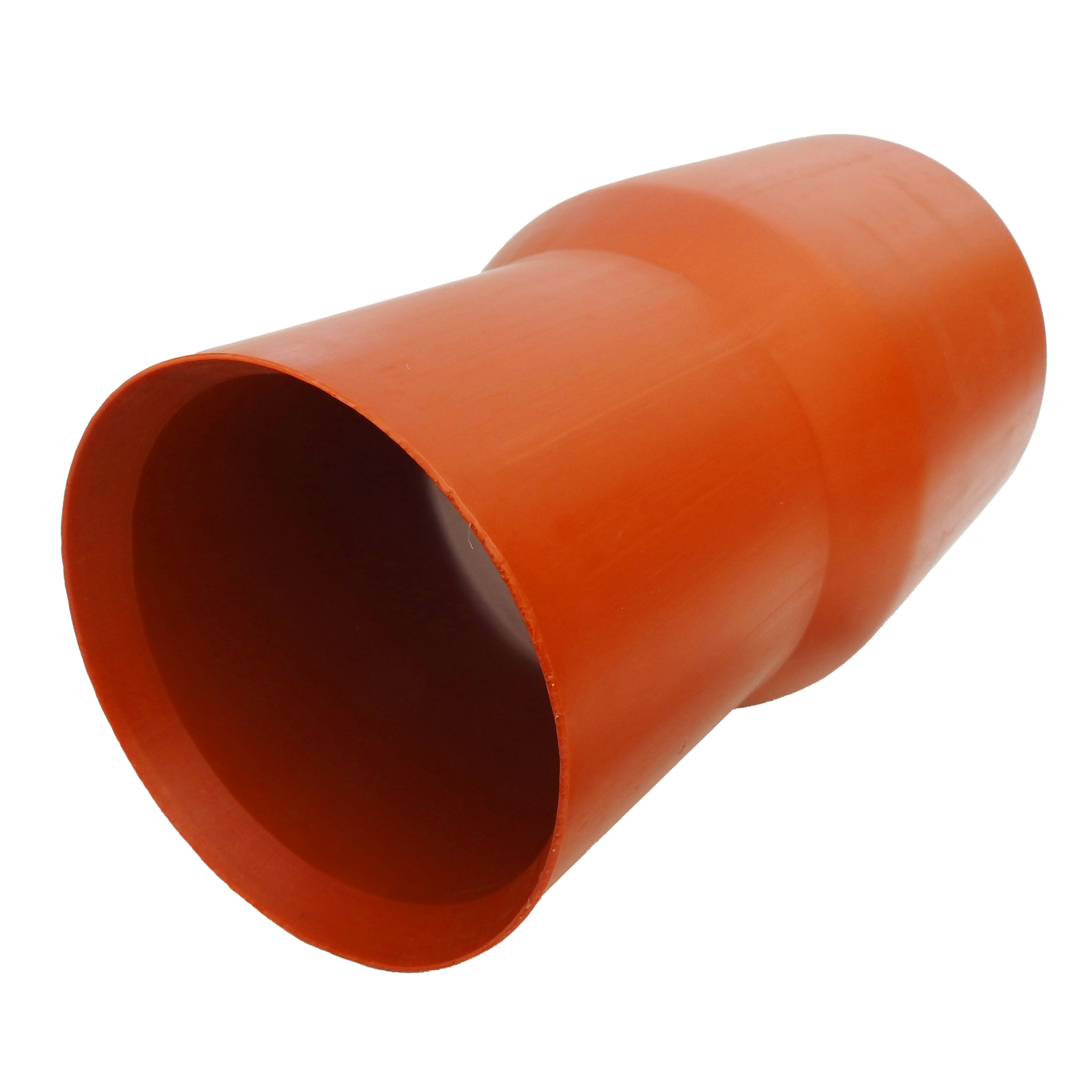

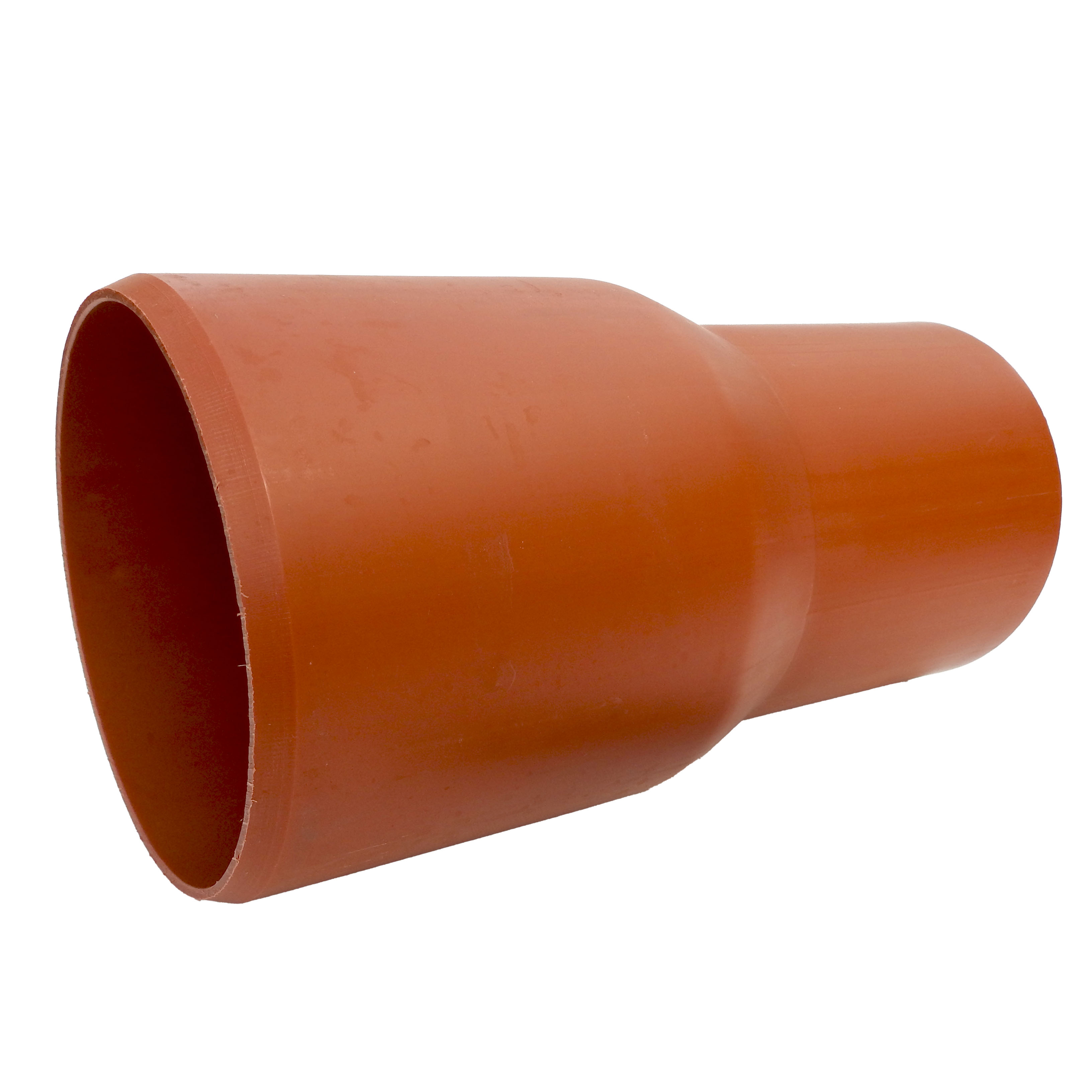

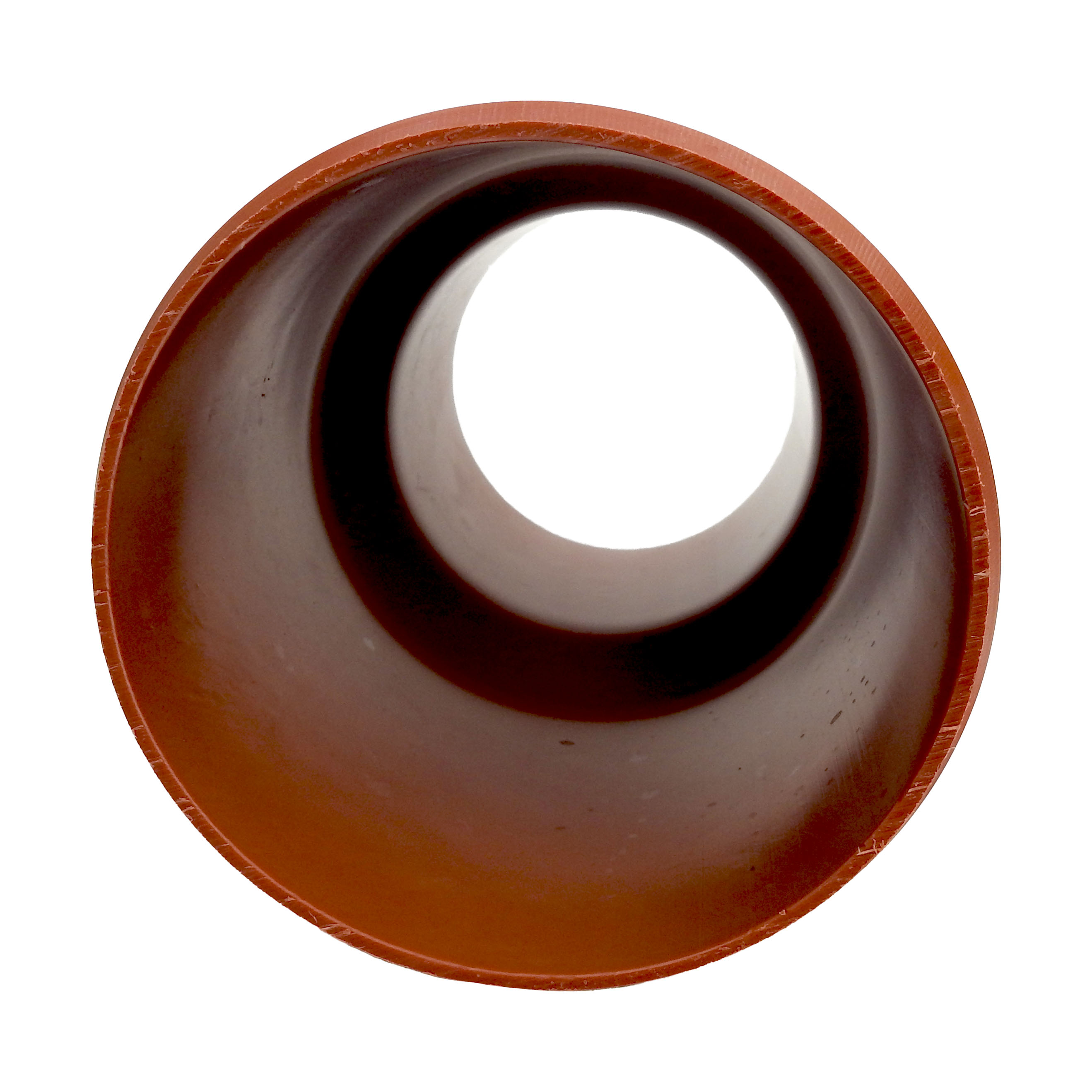

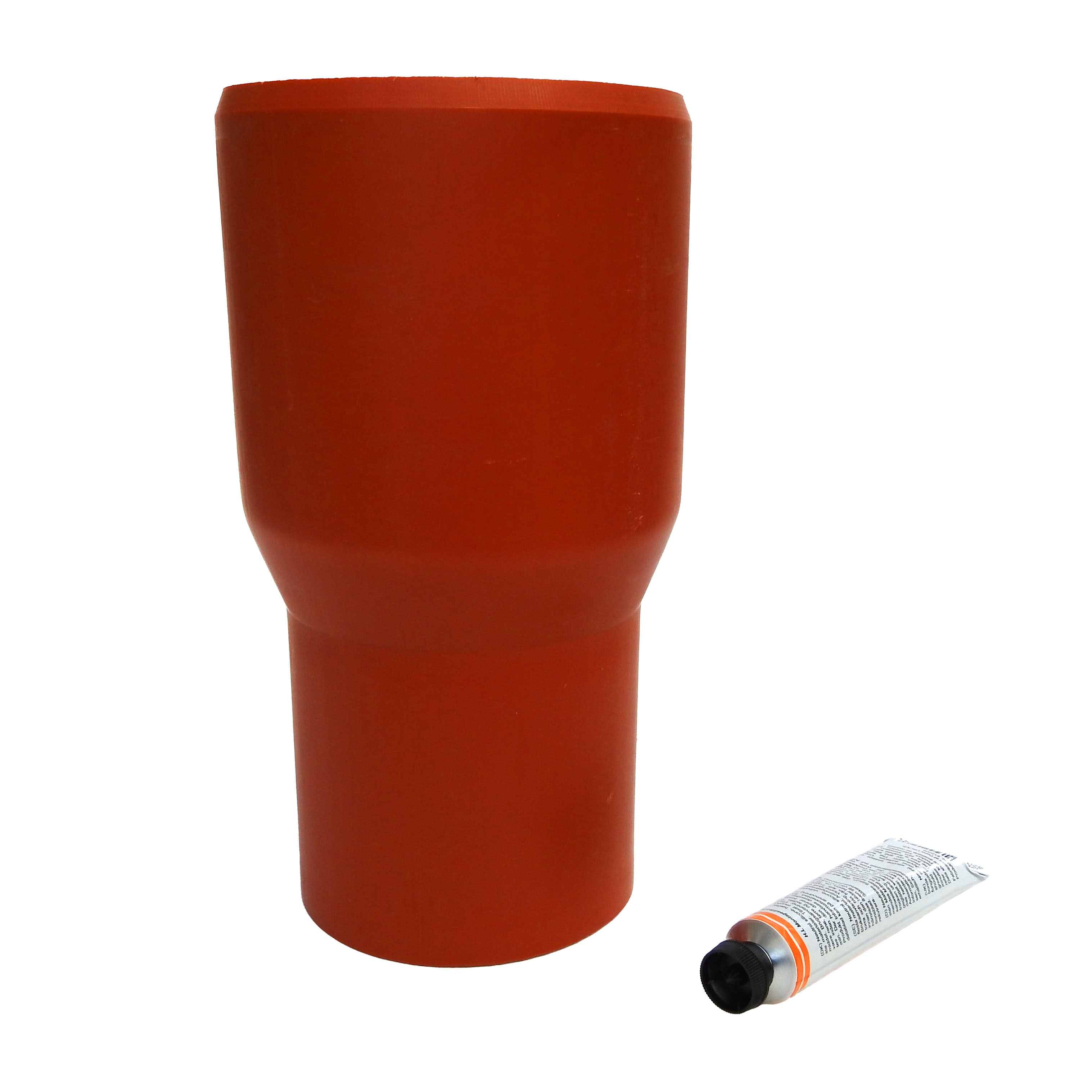

Expansion joint DN160/132mm. is used to create a secure connection to the relined pipeline.
The expansion joint is mounted inside the relined pipe and expanded with a hot air gun to form a tight connection with minimal impact on the original diameter.
The expansion joint can be installed both with or against the direction of flow. Thanks to the beveled edge, a smooth transition is formed.
The expansion joint can be used as a transition between existing concrete, ceramic, cast iron or relined pipes and new plastic pipes.
Diameter: 160mm.
Diameter expansion end: 132mm.
Length: 295mm.
Length expansion end: 120mm.
Material: PP plastic, orange

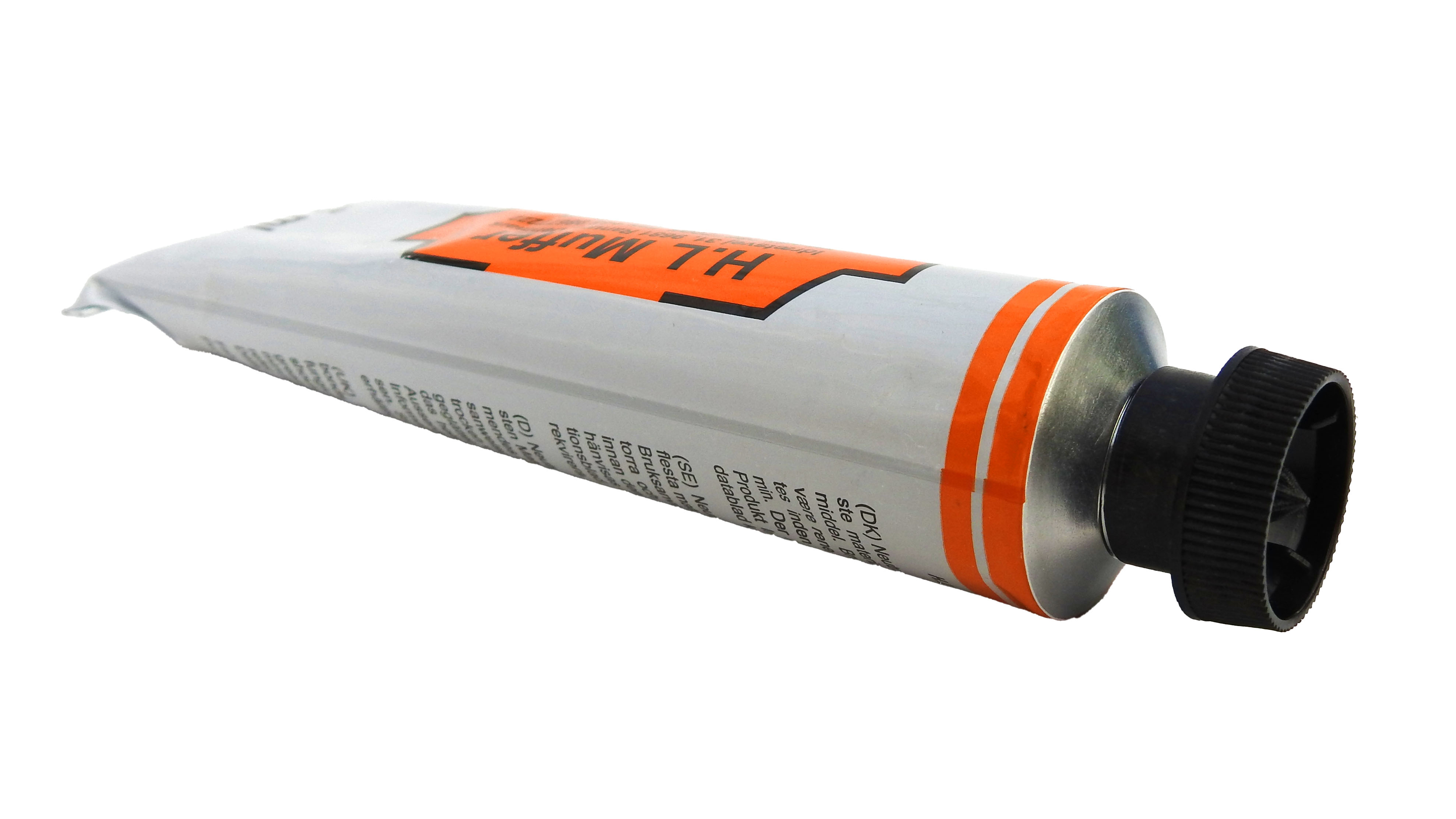

Supplied with sealing compound (silicone) and assembly instructions.
Price per piece.
The expansion joint is mounted inside the relined pipe and expanded with a hot air gun to form a tight connection with minimal impact on the original diameter.
The expansion joint can be installed both with or against the direction of flow. Thanks to the beveled edge, a smooth transition is formed.
The expansion joint can be used as a transition between existing concrete, ceramic, cast iron or relined pipes and new plastic pipes.
Diameter: 160mm.
Diameter expansion end: 132mm.
Length: 295mm.
Length expansion end: 120mm.
Material: PP plastic, orange
Supplied with sealing compound (silicone) and assembly instructions.
Price per piece.
