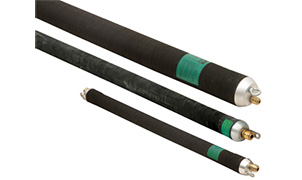

Lateral Packer HP 10/15-3.0
- Do you need more information about this product? We are happy to answer your questions.
Description
Article no.: 521101530
Lateral packer for patch repairs in straight pipelines, flexible with softly rounded ends, to fit through bends.
For pipe diameter: 100-150mm.
Diameter body: 65mm.
Length rubber body: 3000mm.
Total length: 3120mm.
Usable length at max. diameter: 2680mm.
Max. pressure: 2,5 Bar.
Material of body: Rubber.
Material end caps: Aluminum.
Always protect the packer from expanding beyond its diameter range, e.g. in case of large holes or if the packer ends up outside the pipeline.
Please read the safety instructions.
Price per piece.
For pipe diameter: 100-150mm.
Diameter body: 65mm.
Length rubber body: 3000mm.
Total length: 3120mm.
Usable length at max. diameter: 2680mm.
Max. pressure: 2,5 Bar.
Material of body: Rubber.
Material end caps: Aluminum.
Always protect the packer from expanding beyond its diameter range, e.g. in case of large holes or if the packer ends up outside the pipeline.
Please read the safety instructions.
Price per piece.
