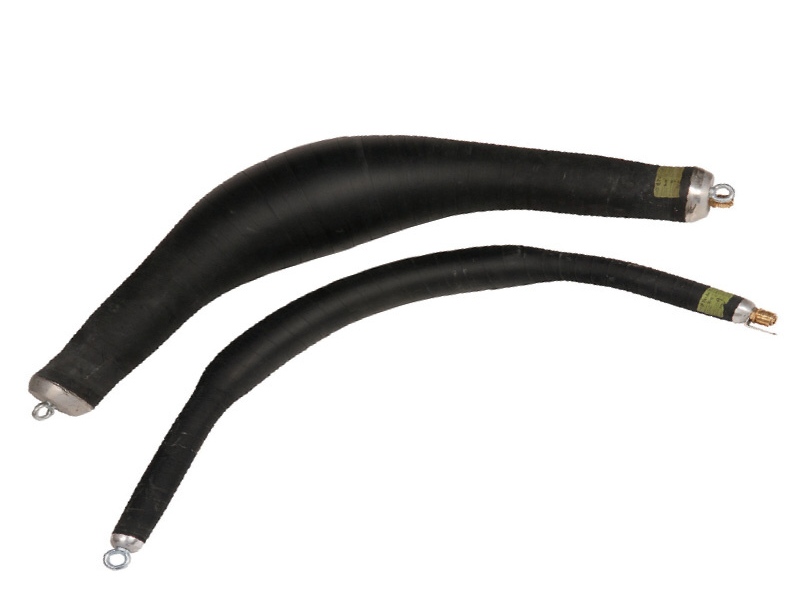

Radius Packer OP 5/7-1,0
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 526050710
Packer specially designed for point repairs in bends, thanks to the extra soft rubber body, this packer molds to the bend without the risk of creases, flexible with softly rounded ends to easily get through bends.
For pipe diameter: 50-70mm.
Diameter body: 35mm.
Length rubber body: 1000mm.
Usable length: 500mm.
Total length: 1110mm.
For bends up to: 90 degrees.
Max. pressure: 2,0 Bar.
Material of body: Rubber.
Material end caps: Aluminum.
Always protect the packer from expanding beyond its diameter range, e.g. in case of large holes or if the packer ends up outside the pipeline.
Please read the safety instructions.
Price per piece.
For pipe diameter: 50-70mm.
Diameter body: 35mm.
Length rubber body: 1000mm.
Usable length: 500mm.
Total length: 1110mm.
For bends up to: 90 degrees.
Max. pressure: 2,0 Bar.
Material of body: Rubber.
Material end caps: Aluminum.
Always protect the packer from expanding beyond its diameter range, e.g. in case of large holes or if the packer ends up outside the pipeline.
Please read the safety instructions.
Price per piece.
