Calibration roller E-Roller 450 Electric
- Do you need more information about this product? We are happy to answer your questions.
Description
Article no.: 214020100

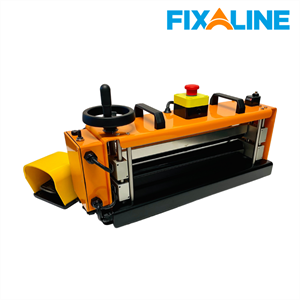

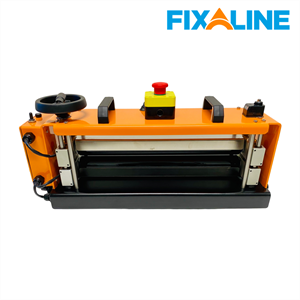

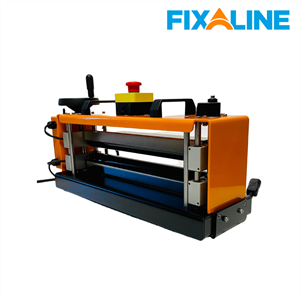

The E-Roller 450 is a small, easily positioned electric calibration roller for liners up to DN150mm.
A bench mount with quick-release brackets makes it easy to move the roller to the workplace if necessary.
Easy adjustment of the gap between the rollers with a knob, the distance is displayed with a counter.
Operated by foot pedal, and switch for forward/reverse travel, speed is steplessly regulated by button on the control box.
Suitable for liners with diameter DN50 up to DN150mm.
Bench mount with quick couplers.
Foot pedal for maneuvering.
Stepless speed control and forward/reverse switch.
Electronic clamp protection, stops the roller to protect the operator.
Emergency stop
Voltage: 100-240 volts, 50/60Hz, 2.1 amps
Dimensions: 650 x 200 x 360mm.
Weight: 19,4kg.
Price per piece.
A bench mount with quick-release brackets makes it easy to move the roller to the workplace if necessary.
Easy adjustment of the gap between the rollers with a knob, the distance is displayed with a counter.
Operated by foot pedal, and switch for forward/reverse travel, speed is steplessly regulated by button on the control box.
Suitable for liners with diameter DN50 up to DN150mm.
Bench mount with quick couplers.
Foot pedal for maneuvering.
Stepless speed control and forward/reverse switch.
Electronic clamp protection, stops the roller to protect the operator.
Emergency stop
Voltage: 100-240 volts, 50/60Hz, 2.1 amps
Dimensions: 650 x 200 x 360mm.
Weight: 19,4kg.
Price per piece.
