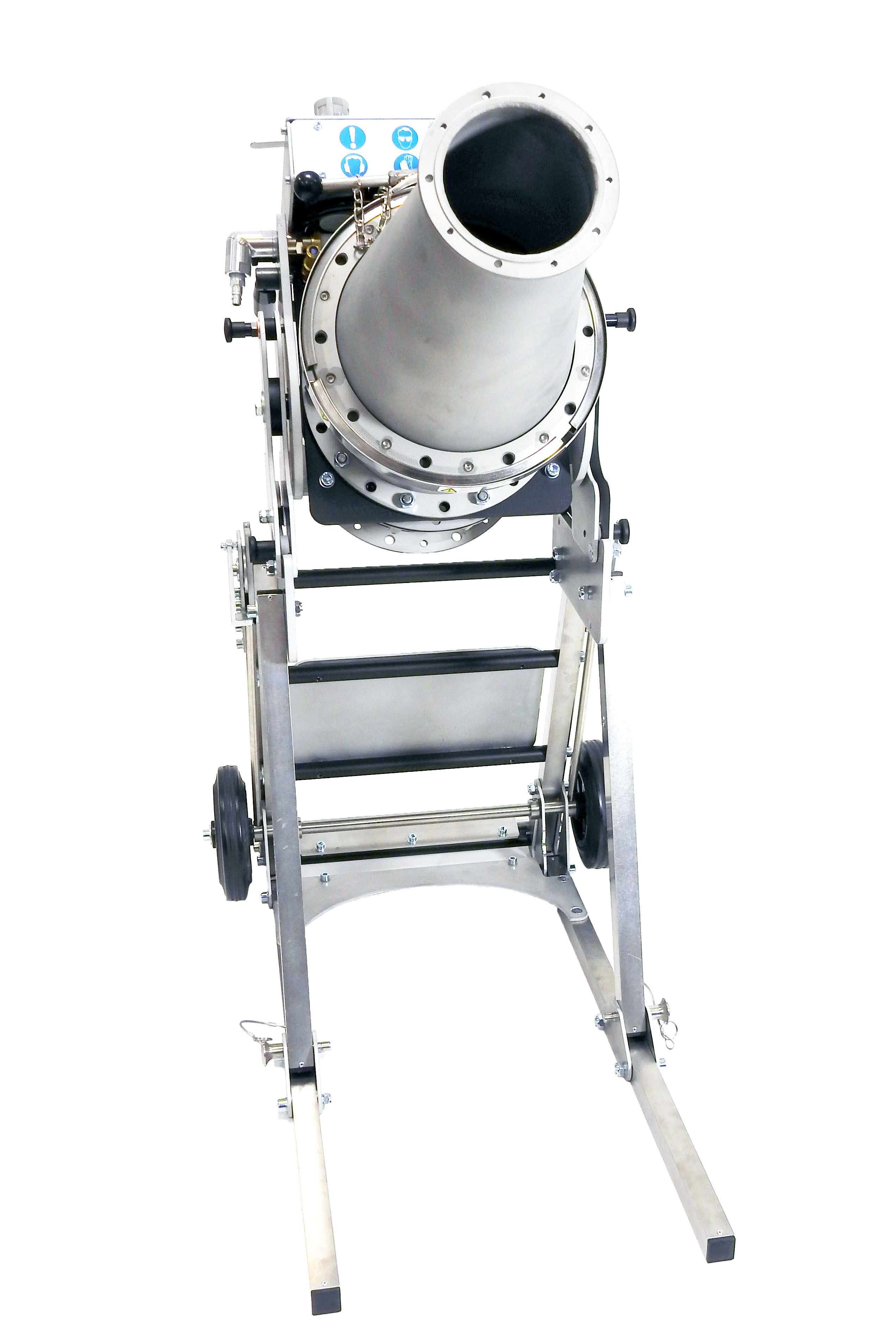

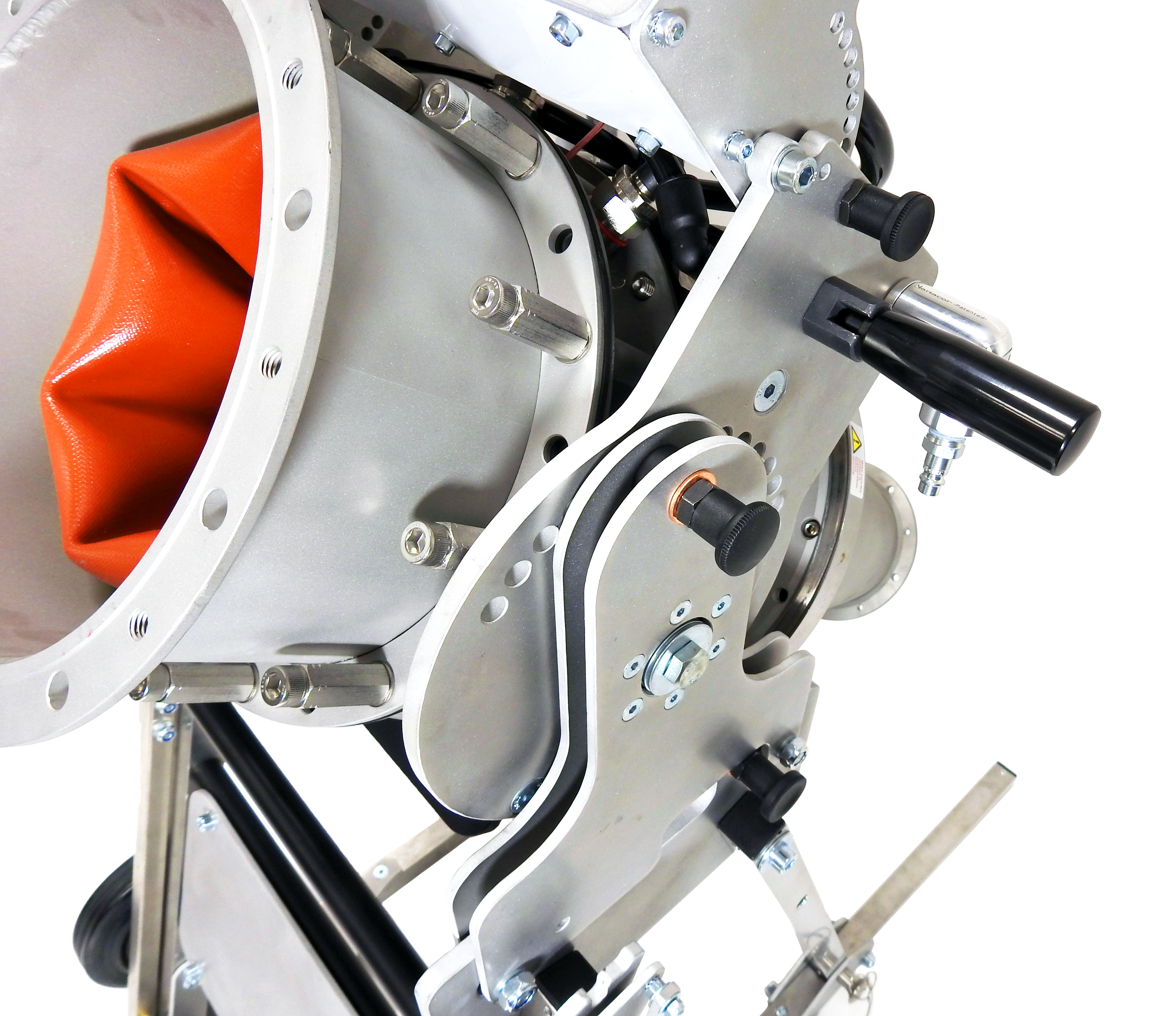

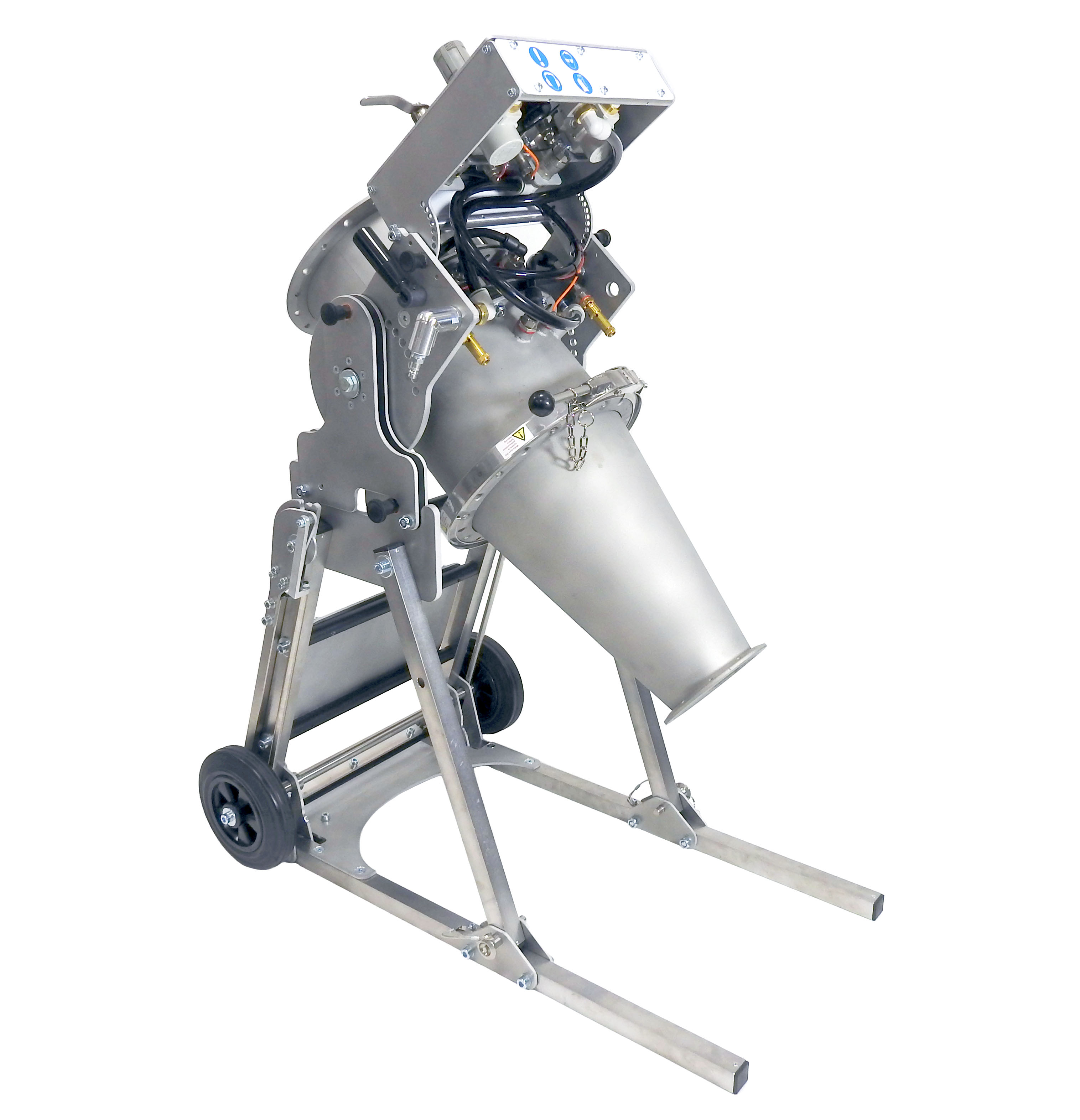

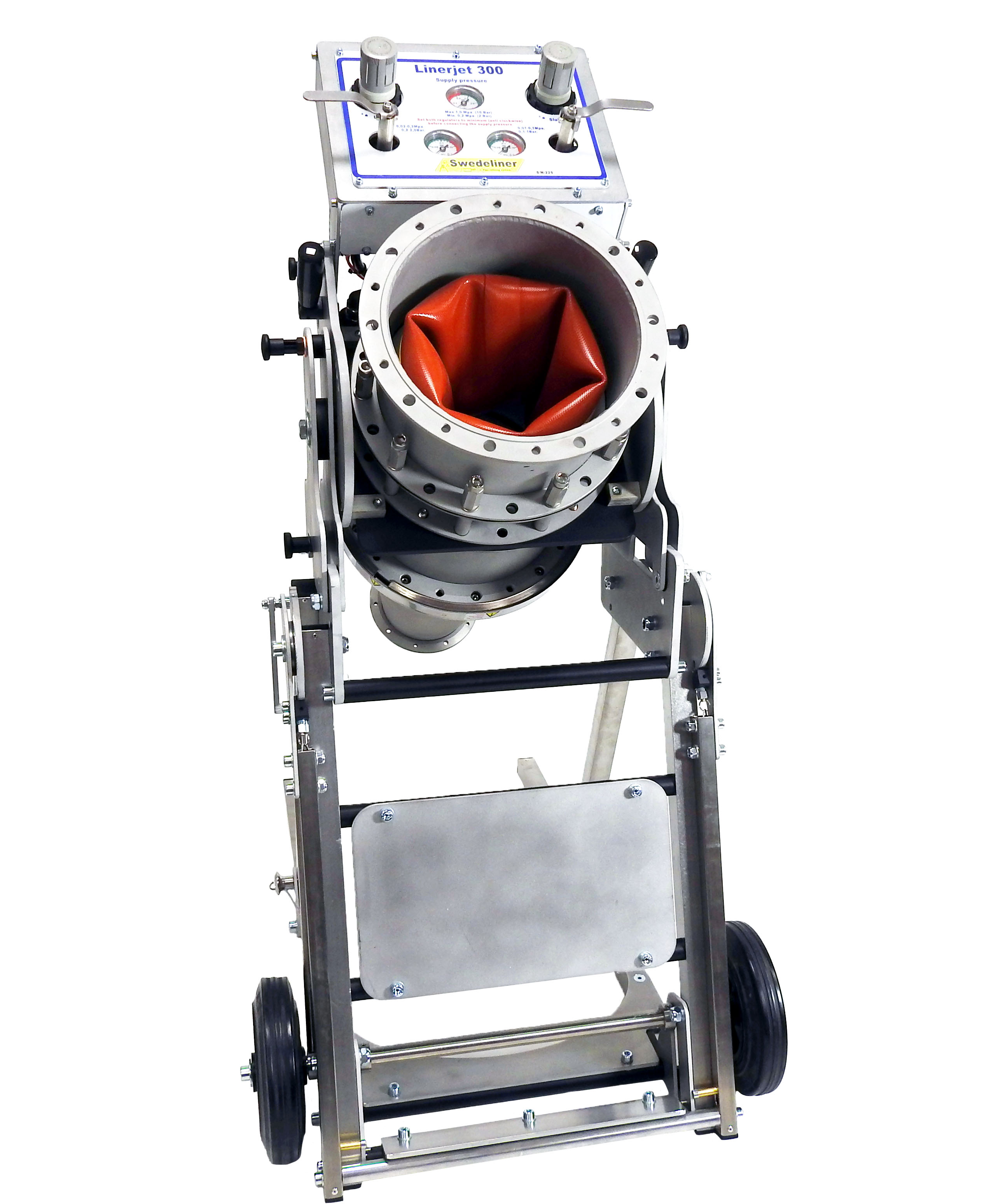

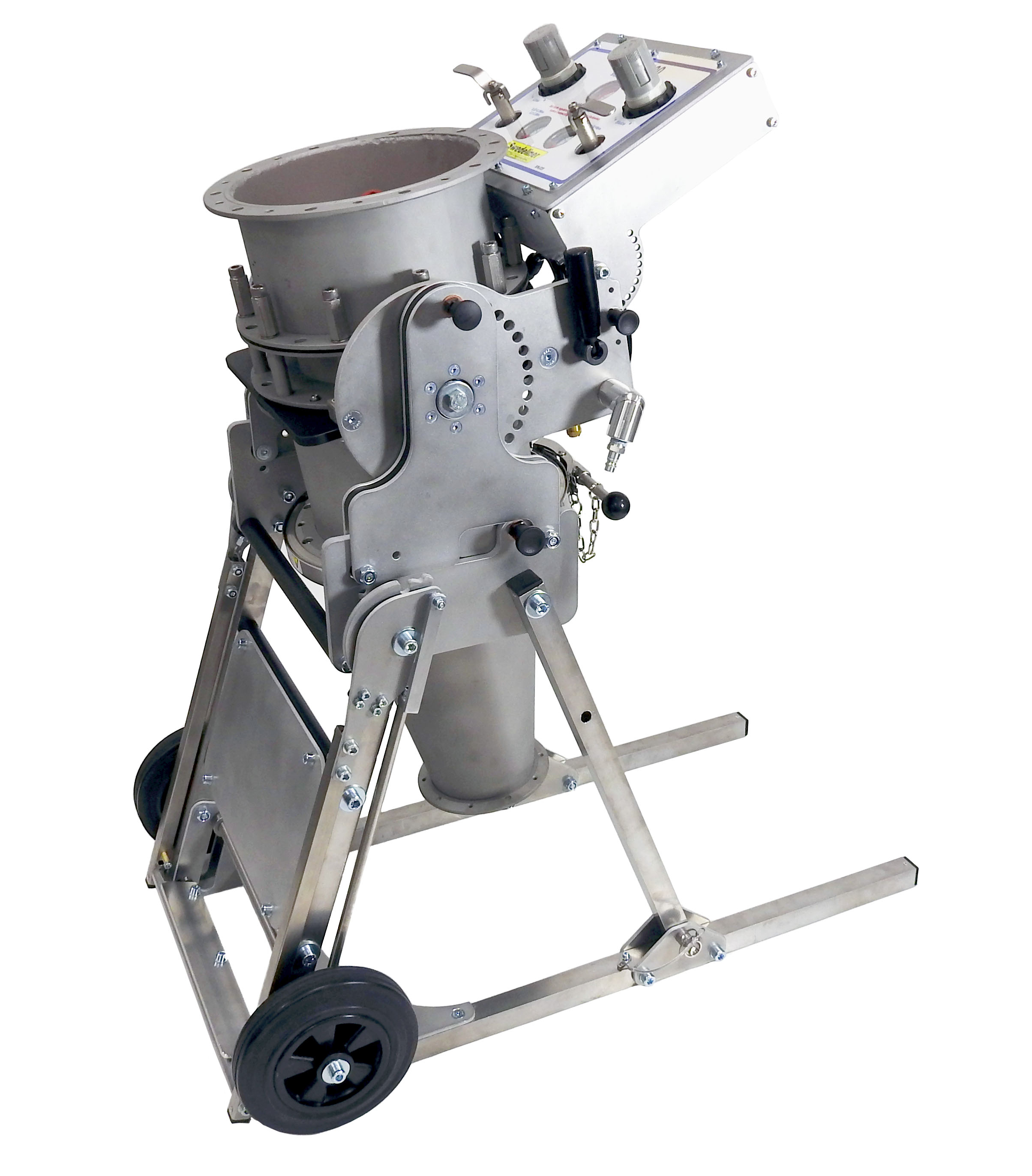

Inversion sluice, LinerJet 300

The Linerjet 300 inversion sluice is specially designed for relining pipelines inside buildings and underground. The robust design allows Linerjet 300 to withstand tougher conditions and heavier liners, but is still easy to handle and place on the work site.

Linerjet 300 is suitable for relining pipes from DN150mm. up to DN400mm. (adapter for smaller dimensions available)
The length that can be installed is basically only limited by the working time of the resin used.

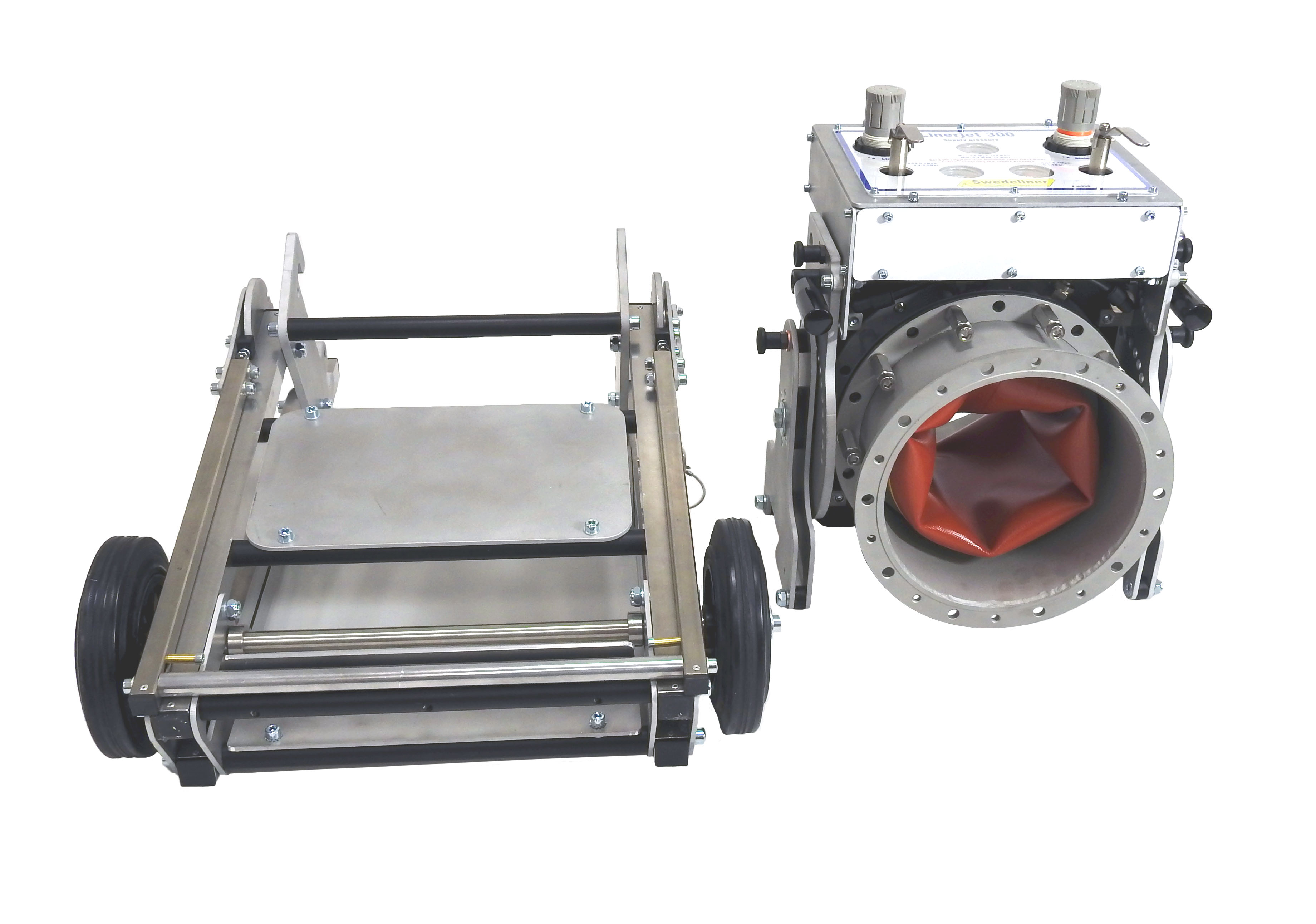

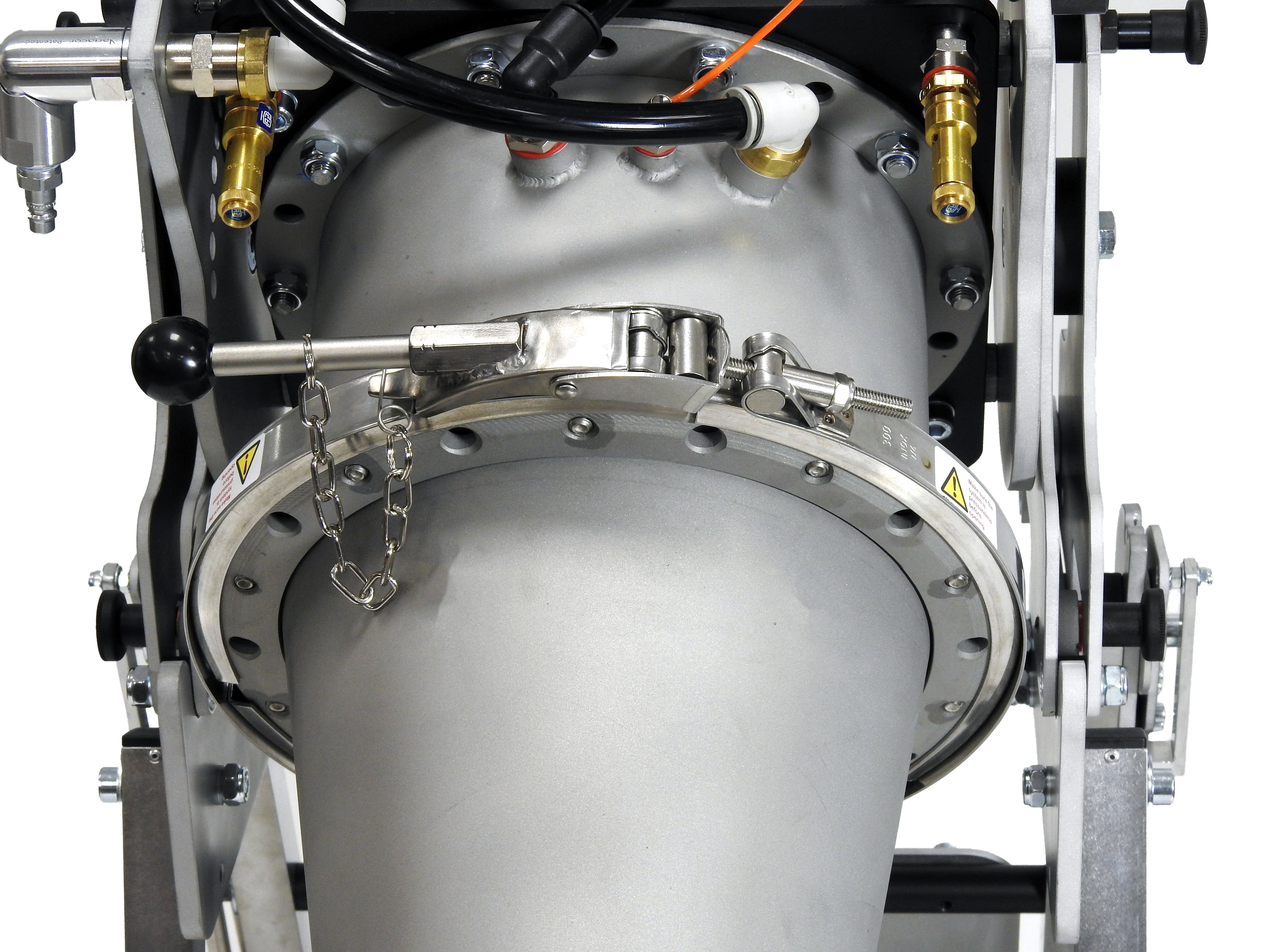

Linerjet 300 is delivered complete with a foldable stand and coupling clamp and rubber gasket.
Inversion nozzles are ordered separately.

Feed pressure: 3-10 Bar. (43.5-145 psi.)
Air consumption: Minimum 1000 liters/minute. (35 CFM.)

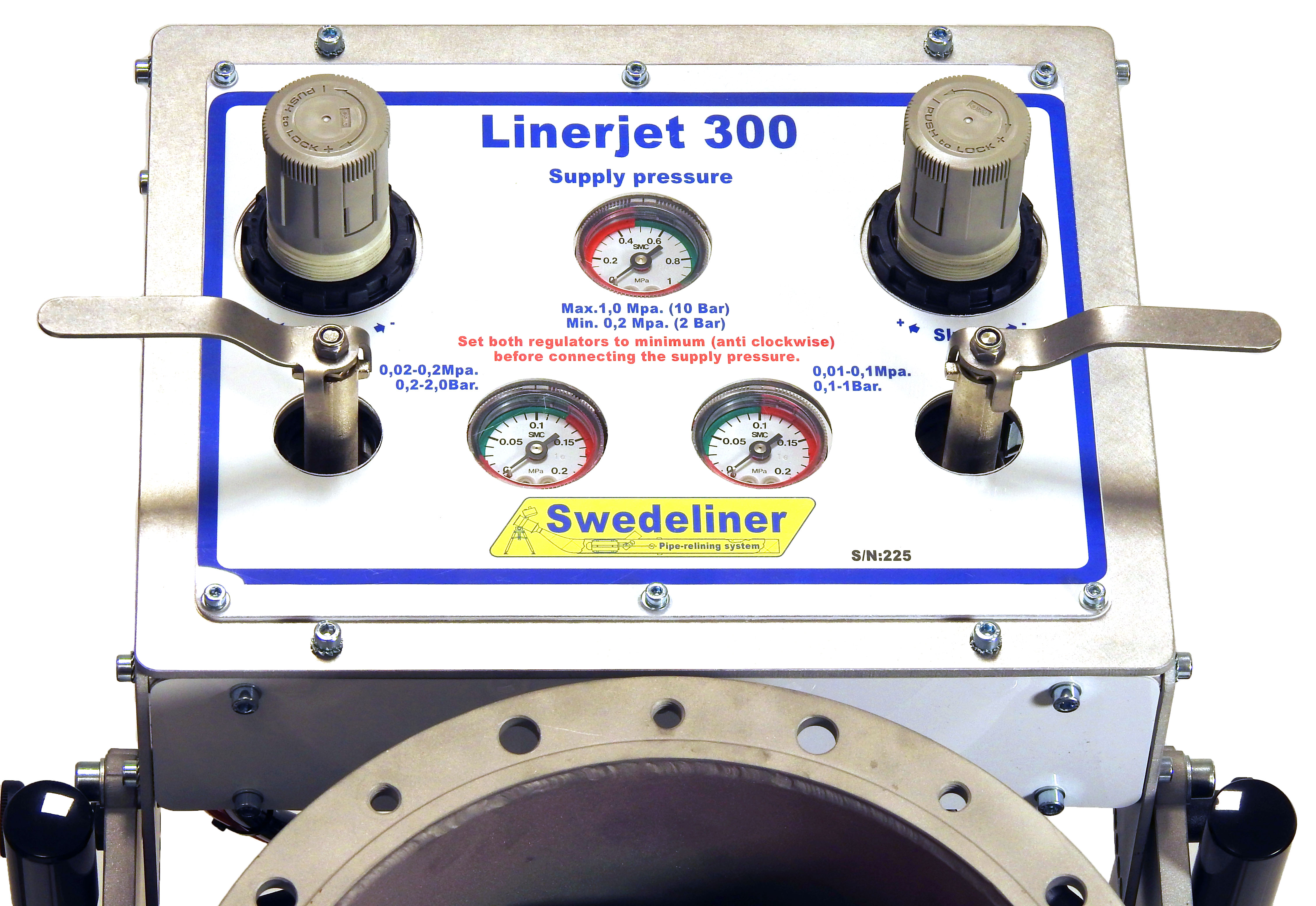

Pressure to bladder: 0-1 Bar. (0-14.5 psi.)
Pressure to liner: 0-1 Bar. (0-14,5 psi.)
Diameter range: DN150mm. up to DN400mm. (6"-16")
Height to center of nozzle:
Total height:
Footprint:
Weight complete kit: 43 Kg. (95 lb.)
Weight inversion unit: 28 Kg (62 lb.)
Weight foldable stand: 15 kg (33 lb.)
Weight of inversion nozzle: approx. 5.5 kg (approx. 12 lb.)
Material: Aluminum and stainless steel

Price per piece.
