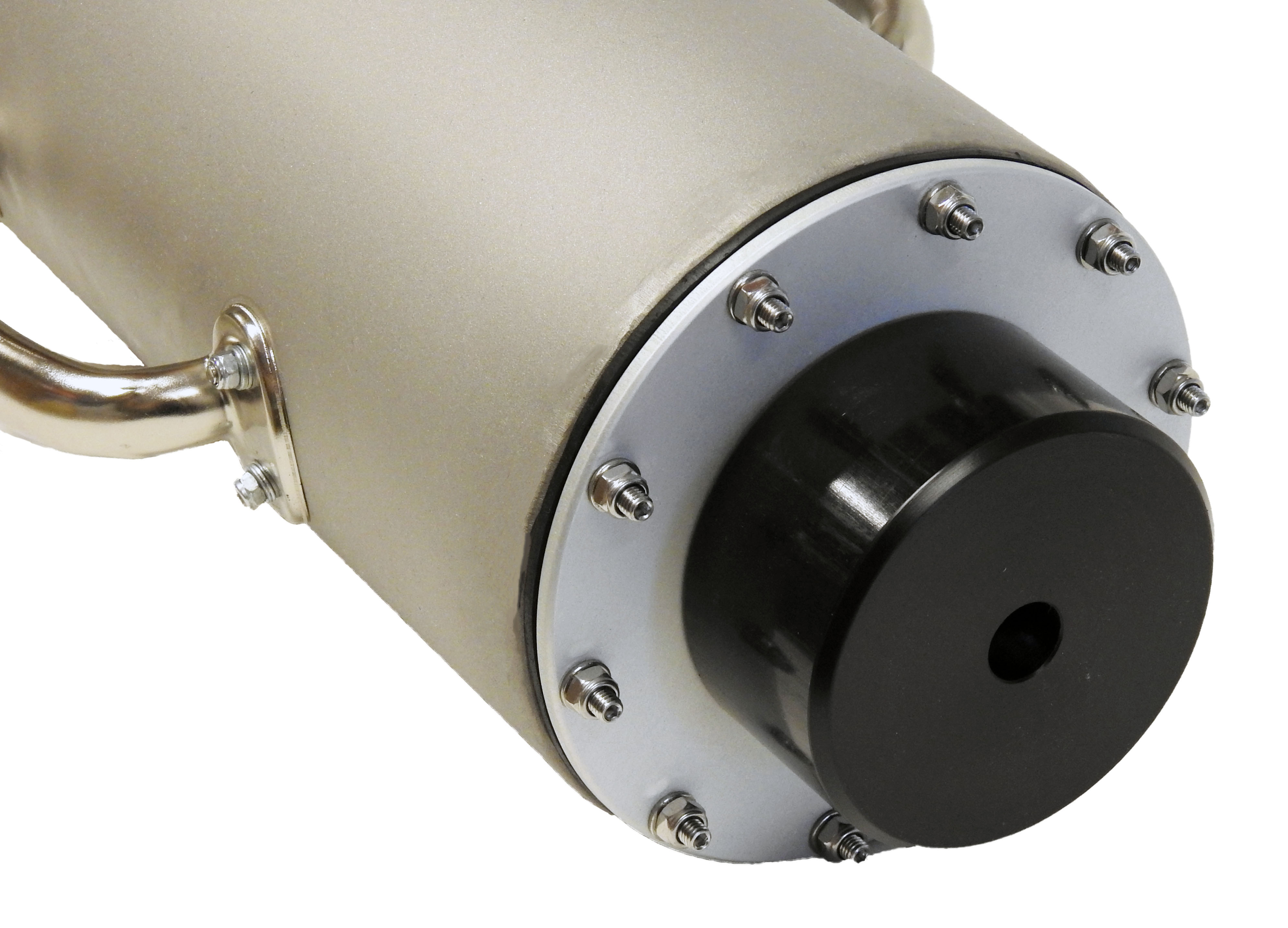

Quickshooter 150, kit DN75, 100, 150mm.
- Do you need more information about this product? We are happy to answer your questions.
Description
Article no.: 202150211
Quickshooter 150 is a simple and easy solution for smaller relining jobs.
Insert the impregnated liner into the tube.

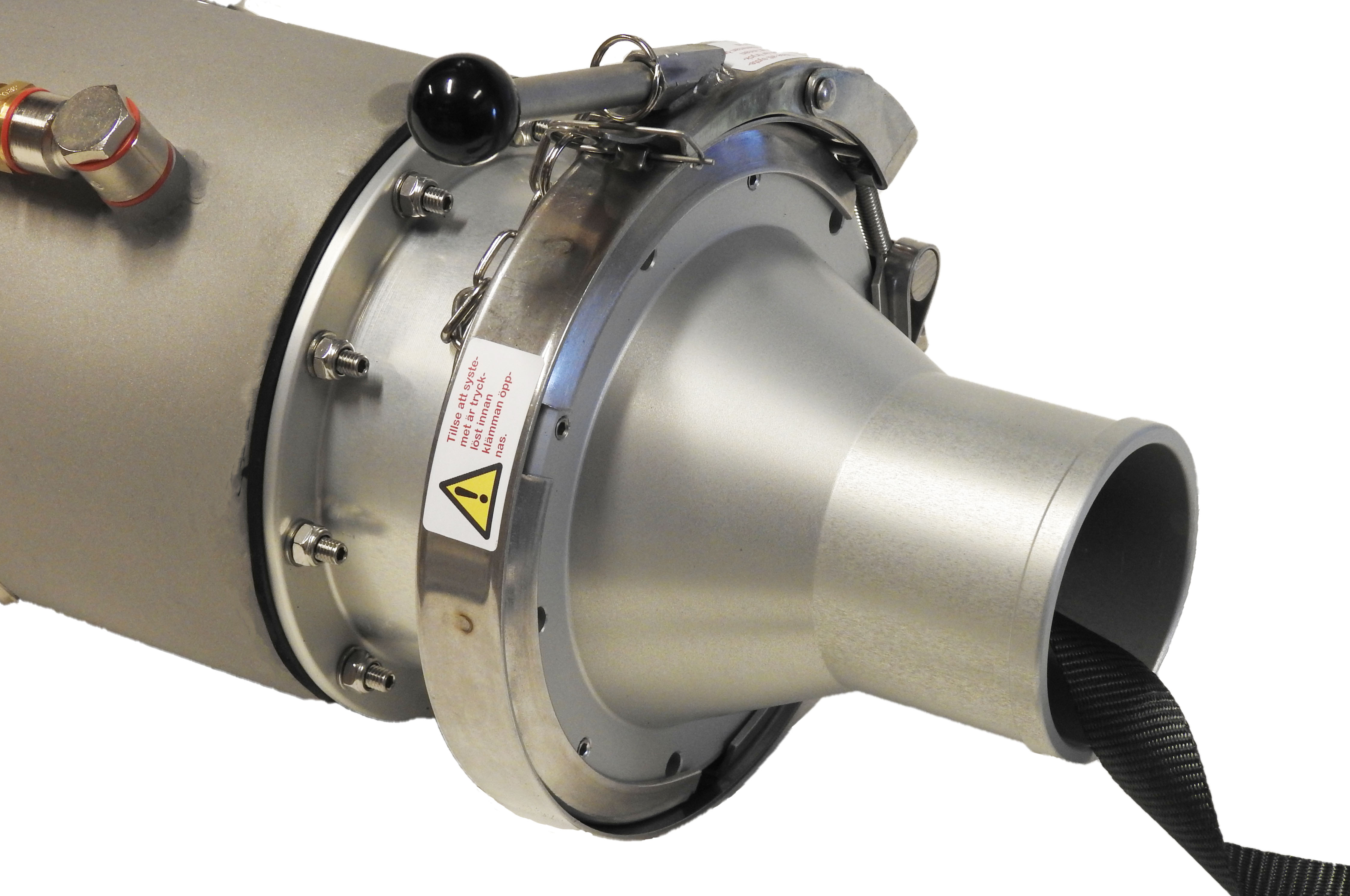

Align the mouth of the tube with the pipe end.
Pressurize the tube, the liner will be inverted into the pipe.

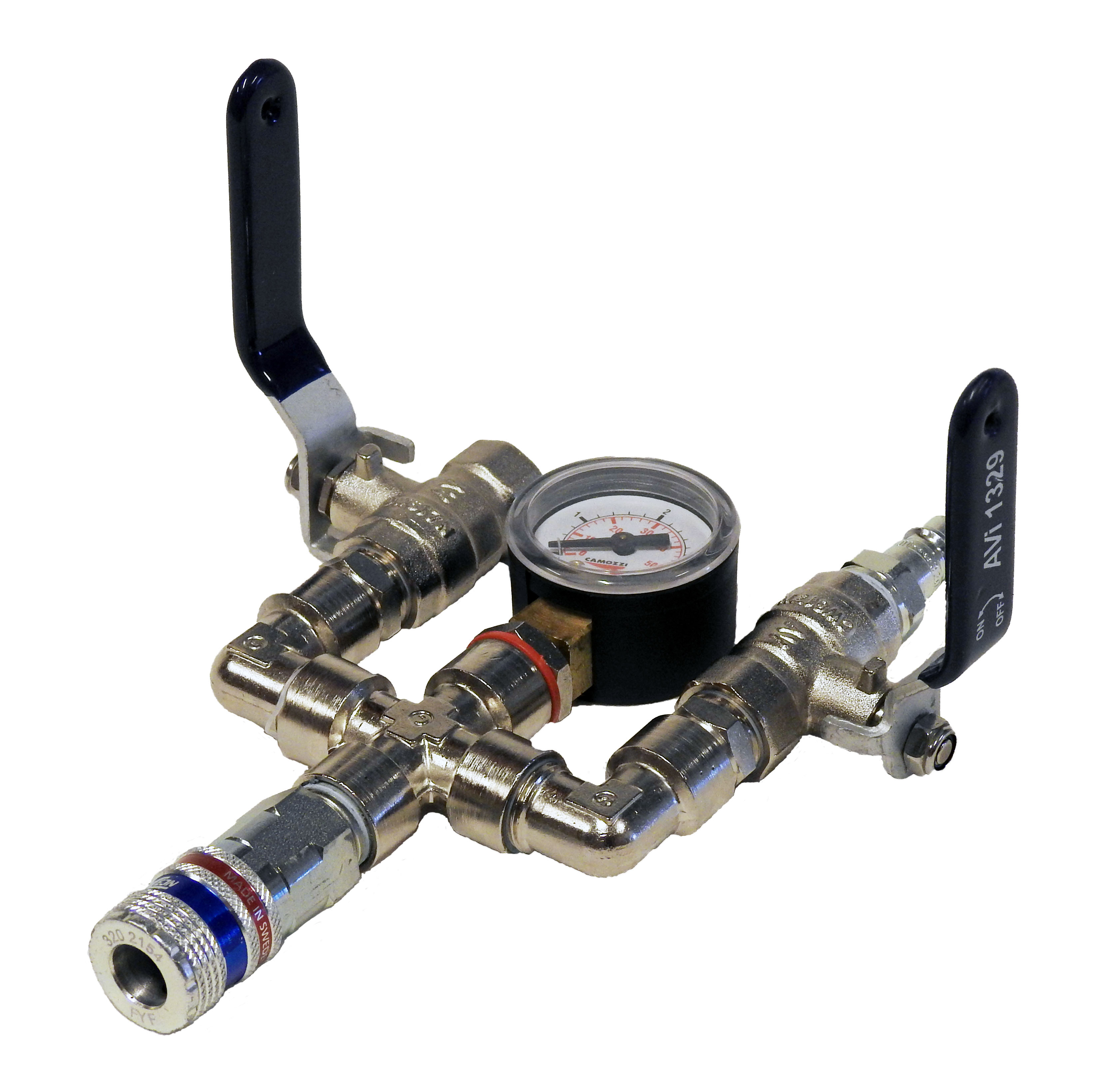

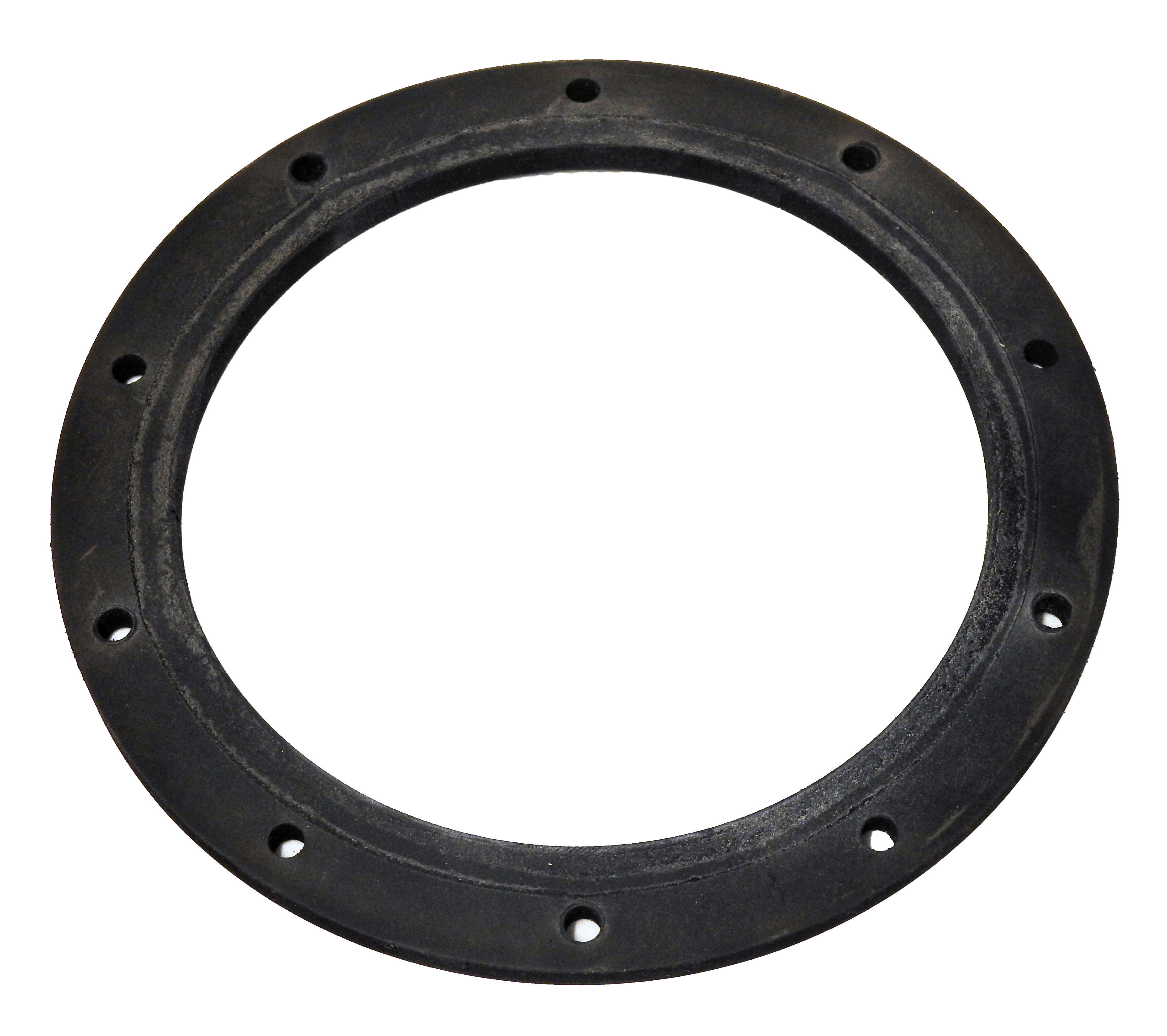

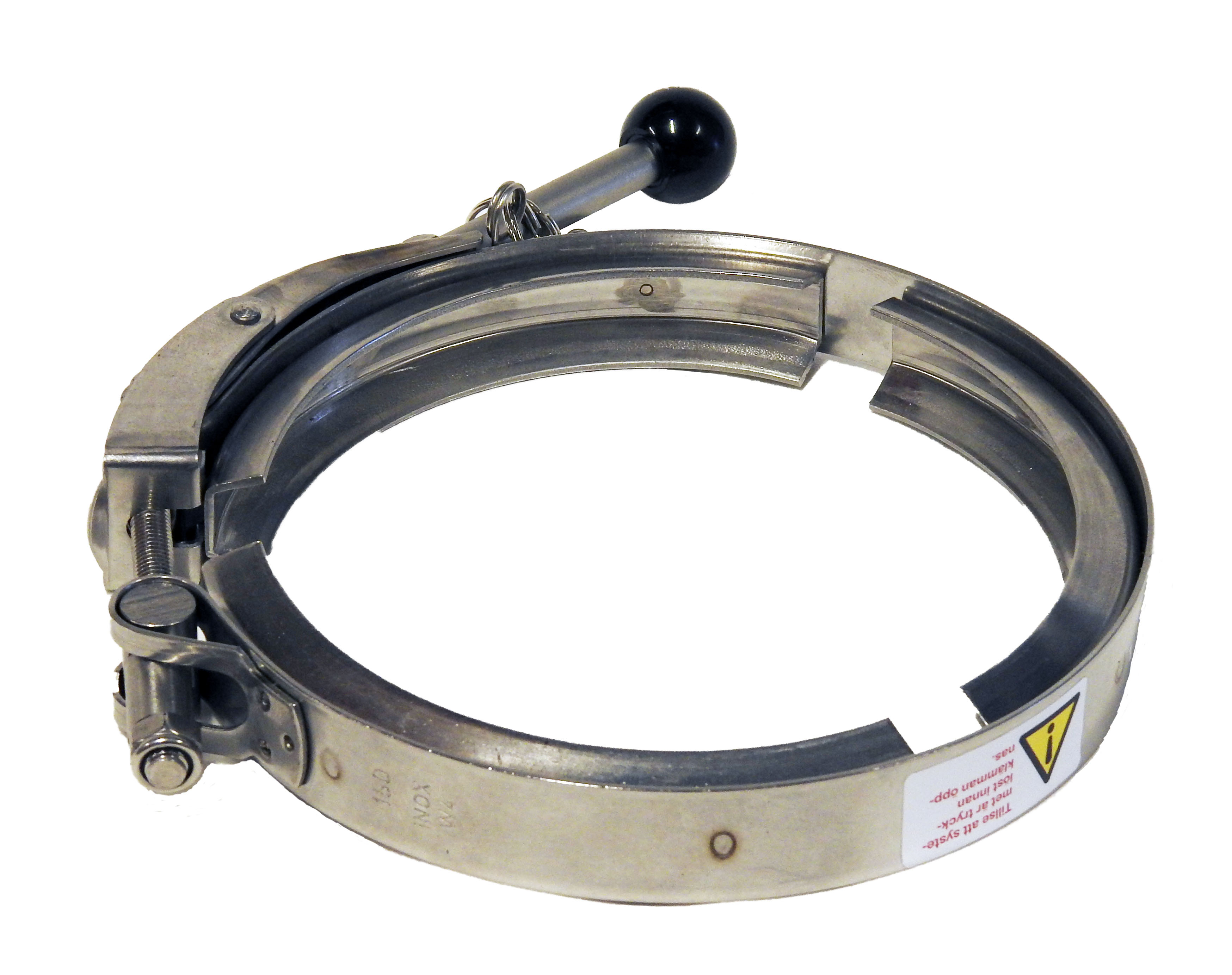

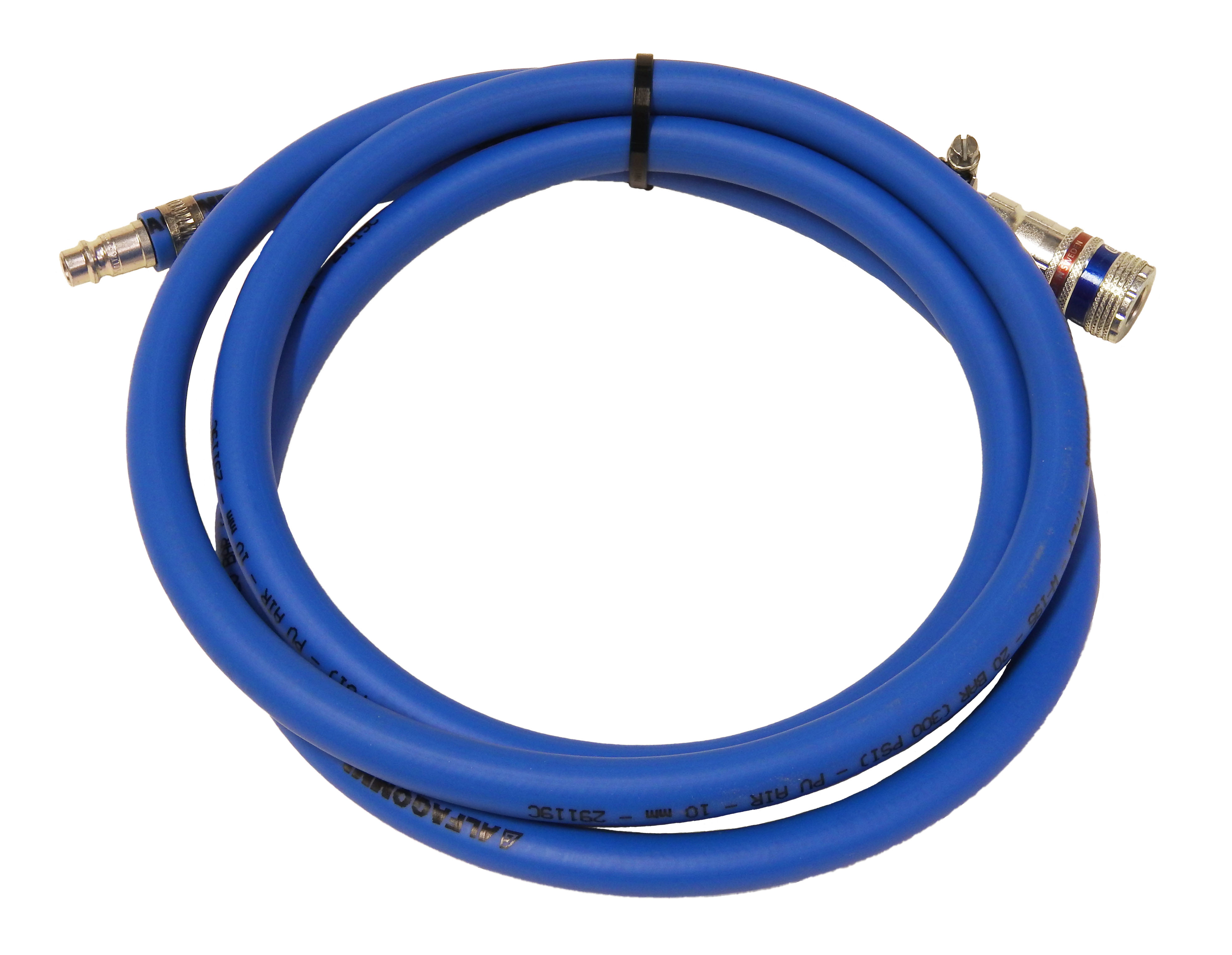

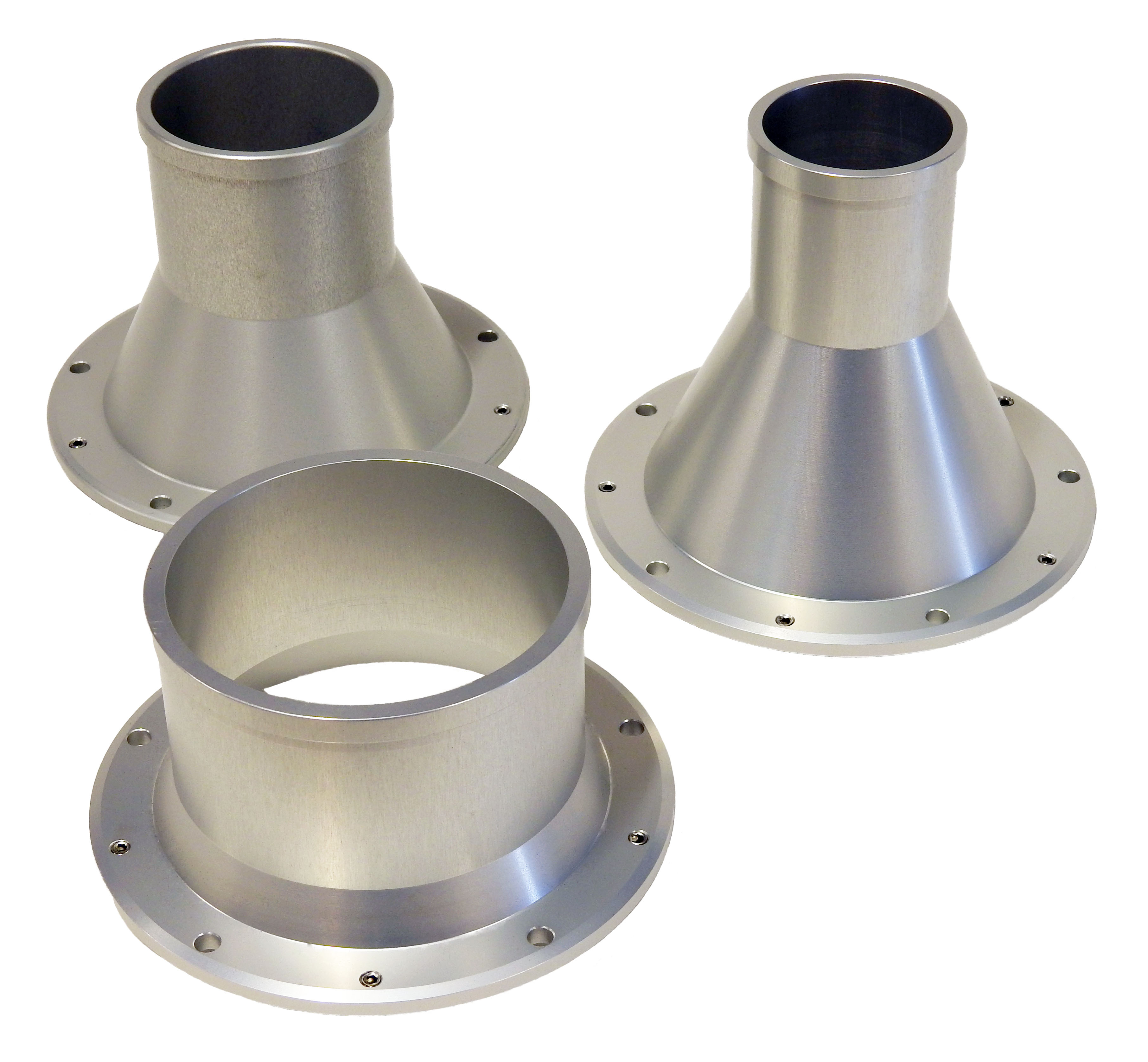

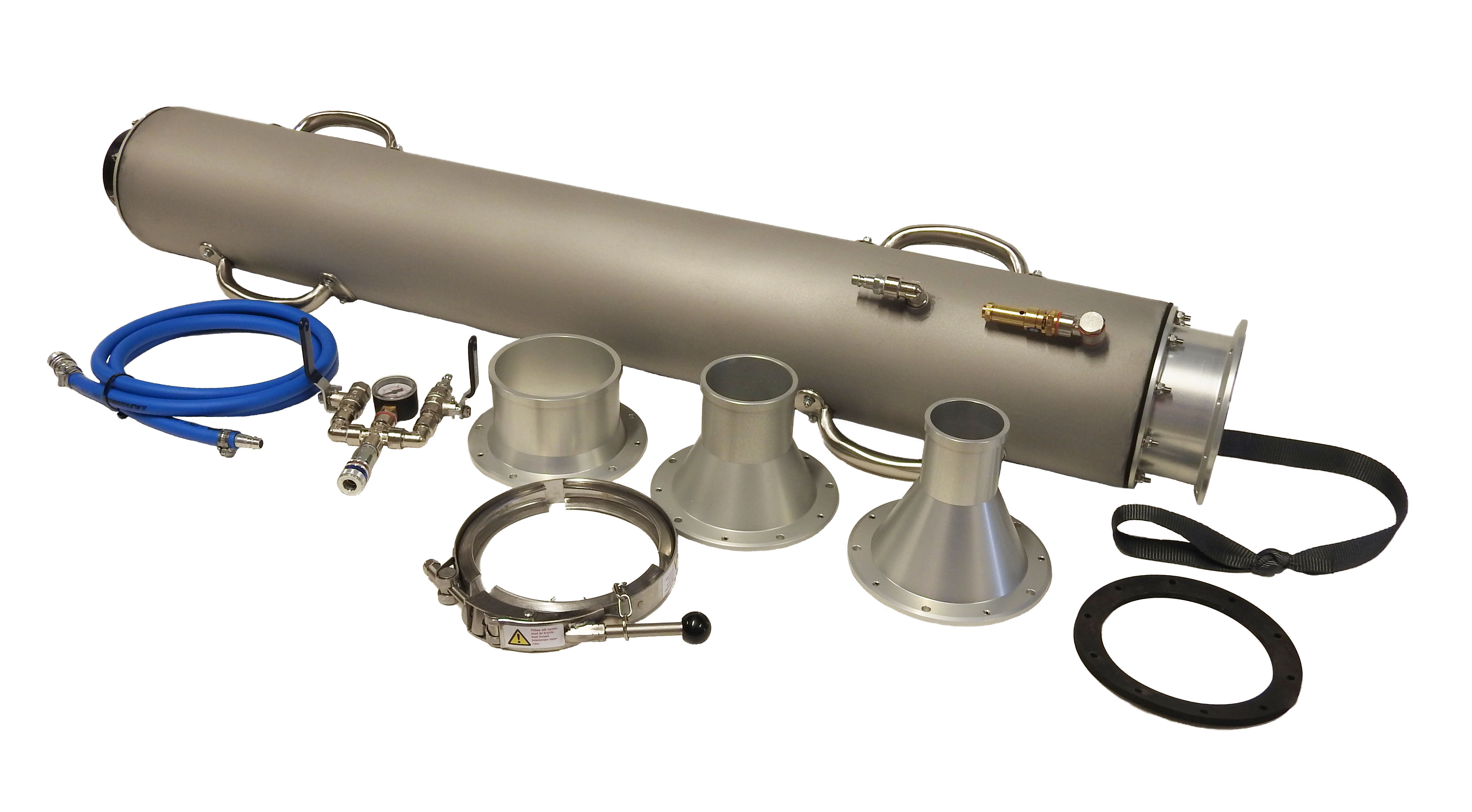

Quickshooter 150 is delivered as a complete kit, ready to use, with accessories and inversion nozzles for DN75mm. DN100mm. and DN150mm.
Liner capacity. (approx. 5mm. thick liner.)
DN75mm. (3") approx. 14 meters (46 ft.)
DN100mm (4") approx. 12 meters (39,4 ft.)
DN150mm (6") approx. 7 meters (23 ft.)
Length: 1100mm (approx. 47,2")
Diameter: 168mm (approx. 6,6")
Weight Quick Shooter: 13 Kg. (approx. 28,7 lb.)
Weight complete kit: 15,5 Kg. (approx. 34,2 lb.)
Max. working pressure: 1 Bar. (14.5 psi)
Air consumption: approx. 50-100 liters/minute (1.7-3.5 CFM.)
Material: Stainless steel and Aluminum.
Price per piece.
Insert the impregnated liner into the tube.
Align the mouth of the tube with the pipe end.
Pressurize the tube, the liner will be inverted into the pipe.
Quickshooter 150 is delivered as a complete kit, ready to use, with accessories and inversion nozzles for DN75mm. DN100mm. and DN150mm.
Liner capacity. (approx. 5mm. thick liner.)
DN75mm. (3") approx. 14 meters (46 ft.)
DN100mm (4") approx. 12 meters (39,4 ft.)
DN150mm (6") approx. 7 meters (23 ft.)
Length: 1100mm (approx. 47,2")
Diameter: 168mm (approx. 6,6")
Weight Quick Shooter: 13 Kg. (approx. 28,7 lb.)
Weight complete kit: 15,5 Kg. (approx. 34,2 lb.)
Max. working pressure: 1 Bar. (14.5 psi)
Air consumption: approx. 50-100 liters/minute (1.7-3.5 CFM.)
Material: Stainless steel and Aluminum.
Price per piece.
