Quickshooter 300, kit DN75, 100, 150mm.
- Do you need more information about this product? We are happy to answer your questions.
Description
Article no.: 202300211
Quickshooter 300 is a simple and easy solution for smaller relining jobs.
Insert the impregnated liner into the tube.
Align the mouth of the tube with the pipe end.
Press the tube, the liner is twisted into the pipe.

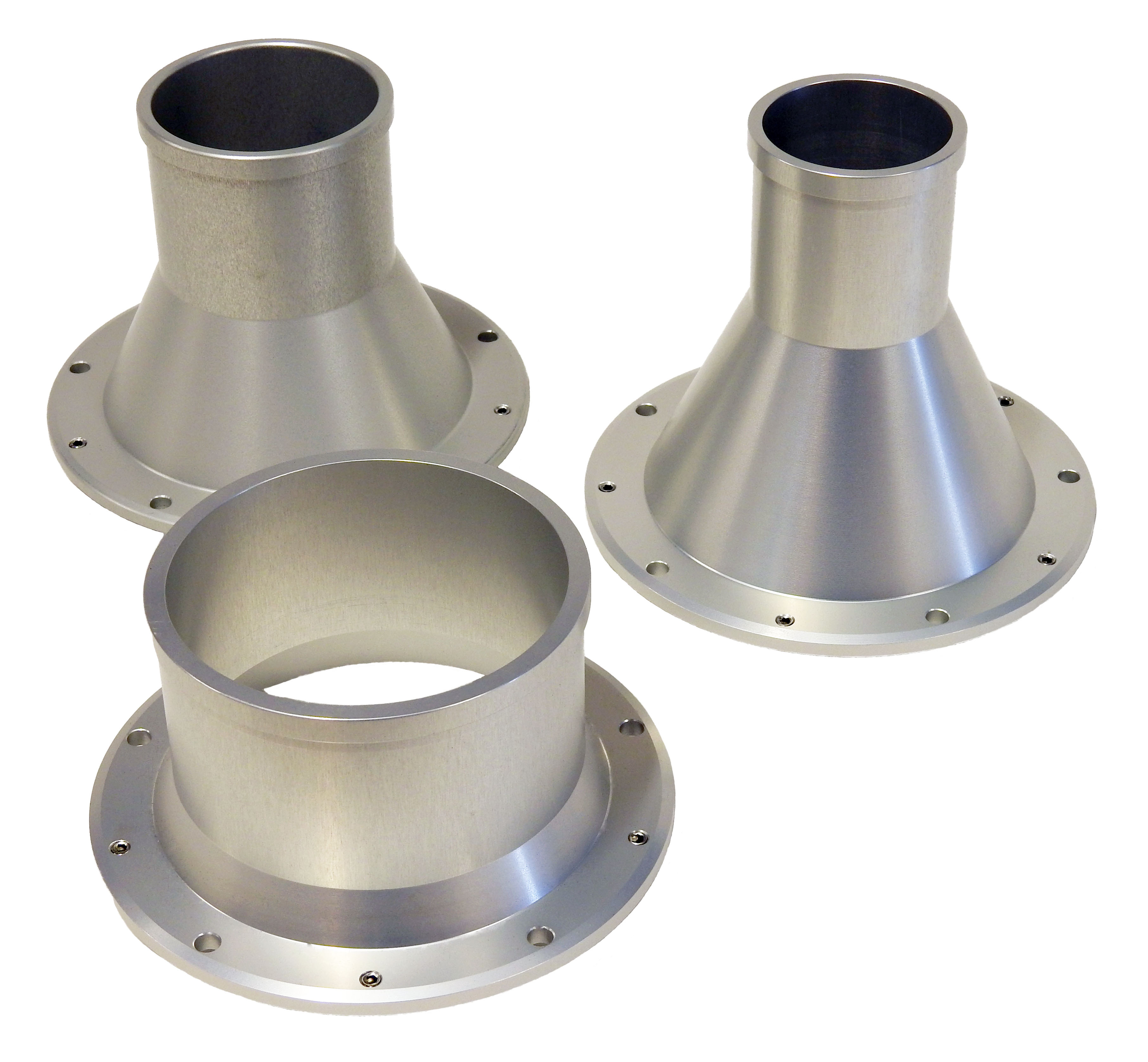

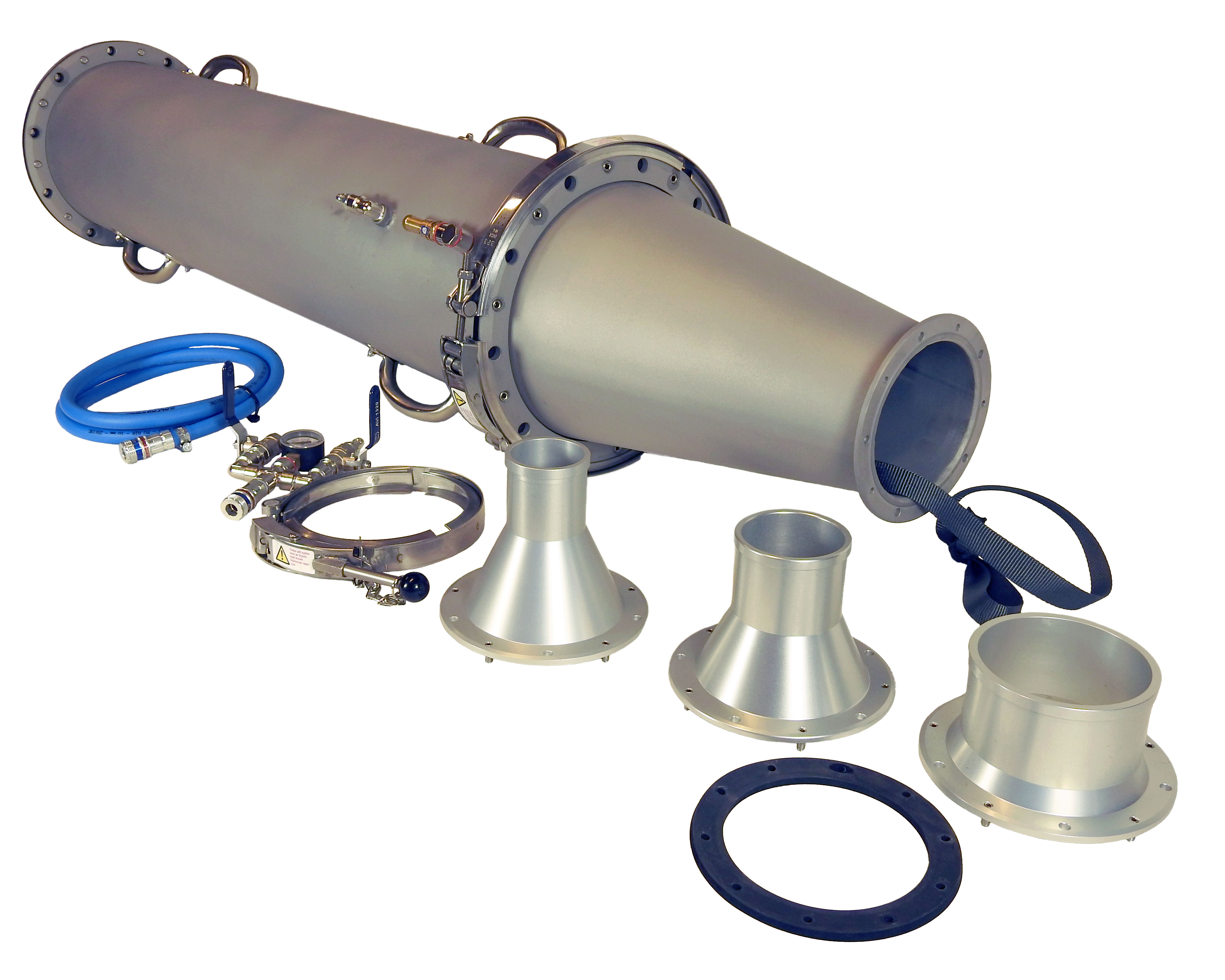

Quickshooter 300 is delivered as a complete kit, ready to use, with accessories and nozzles for DN75mm. DN100mm. and DN150mm.
Liner capacity. (approx. 5mm. thick liner.)
DN75mm. (3") approx. 22 meters (72 ft.)
DN100mm. (4") approx. 20 meters (65,6 ft.)
DN150mm (6") approx. 15 meters (49 ft.)
Length: 1100mm (approx. 47,2")
Length with adapter cone: 1600mm (approx. 63")
Diameter: 254mm (approx. 10")
Weight Quick Shooter: 27,5 Kg (approx. 60,6 lb.)
Weight complete kit: 31 Kg. (approx. 68,3 lb.)
Max. working pressure: 1 Bar. (14.5 psi)
Air consumption: approx. 50-100 liters/minute (1.7-3.5 CFM.)
Material: Stainless steel and Aluminum.
Price per piece.
Insert the impregnated liner into the tube.
Align the mouth of the tube with the pipe end.
Press the tube, the liner is twisted into the pipe.
Quickshooter 300 is delivered as a complete kit, ready to use, with accessories and nozzles for DN75mm. DN100mm. and DN150mm.
Liner capacity. (approx. 5mm. thick liner.)
DN75mm. (3") approx. 22 meters (72 ft.)
DN100mm. (4") approx. 20 meters (65,6 ft.)
DN150mm (6") approx. 15 meters (49 ft.)
Length: 1100mm (approx. 47,2")
Length with adapter cone: 1600mm (approx. 63")
Diameter: 254mm (approx. 10")
Weight Quick Shooter: 27,5 Kg (approx. 60,6 lb.)
Weight complete kit: 31 Kg. (approx. 68,3 lb.)
Max. working pressure: 1 Bar. (14.5 psi)
Air consumption: approx. 50-100 liters/minute (1.7-3.5 CFM.)
Material: Stainless steel and Aluminum.
Price per piece.
