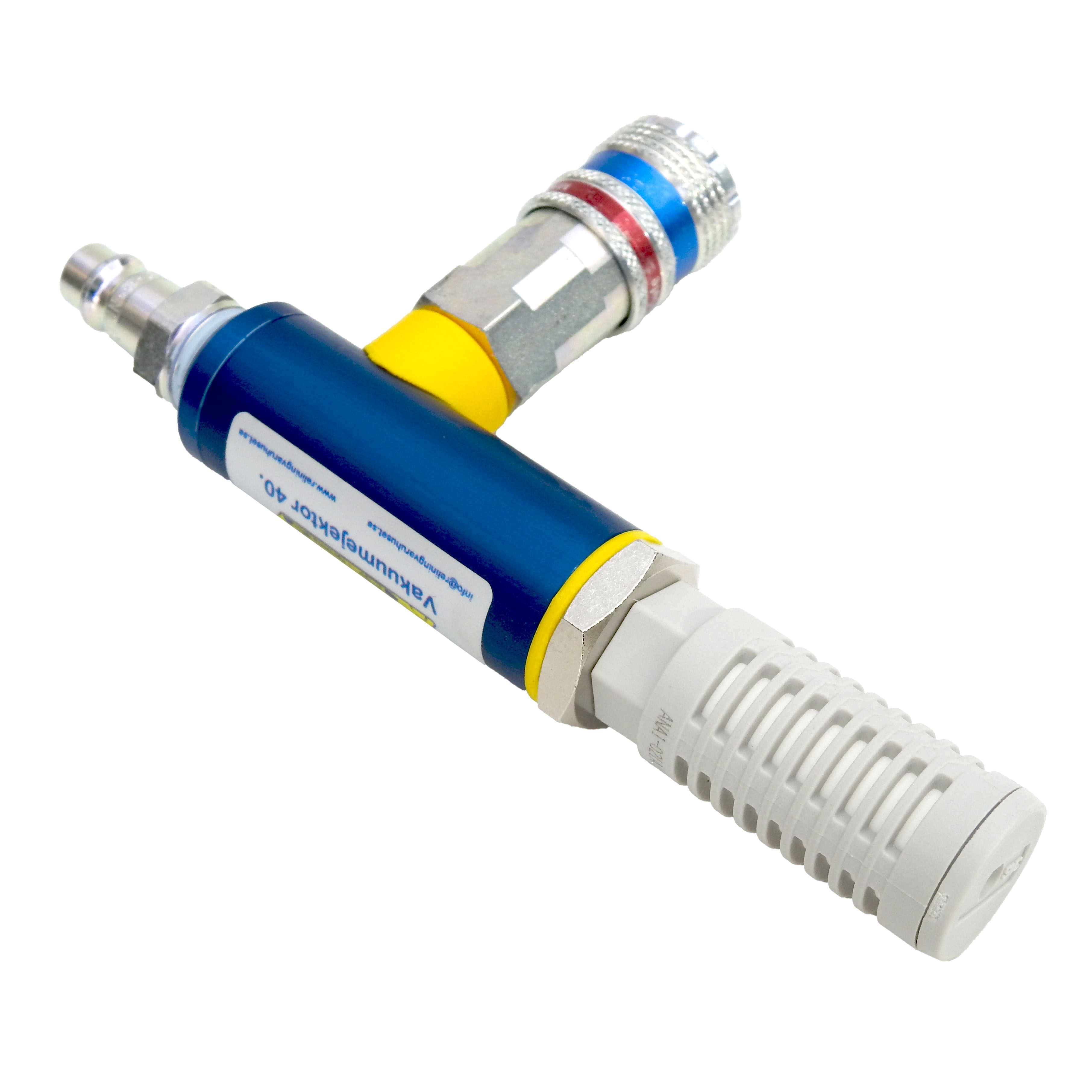

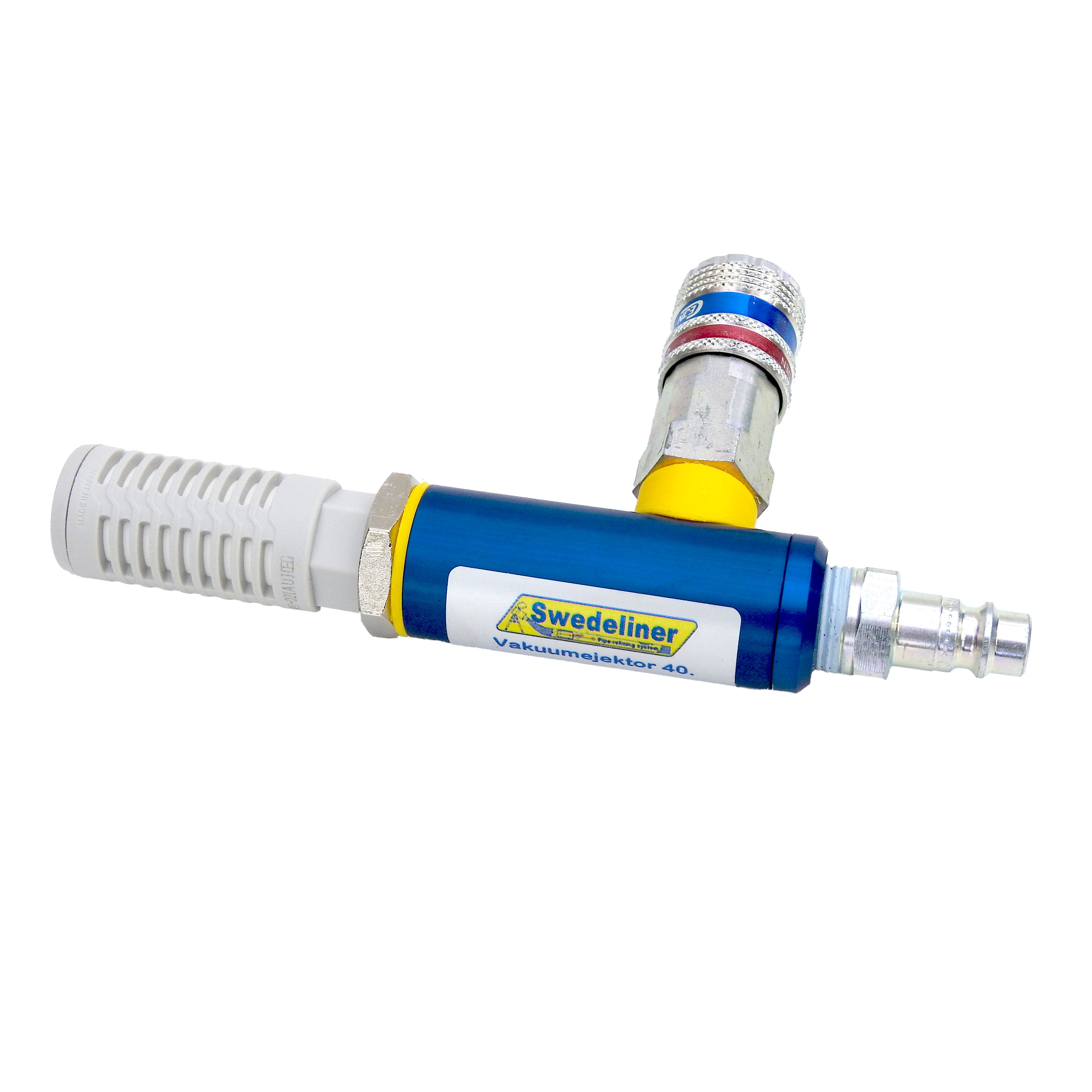

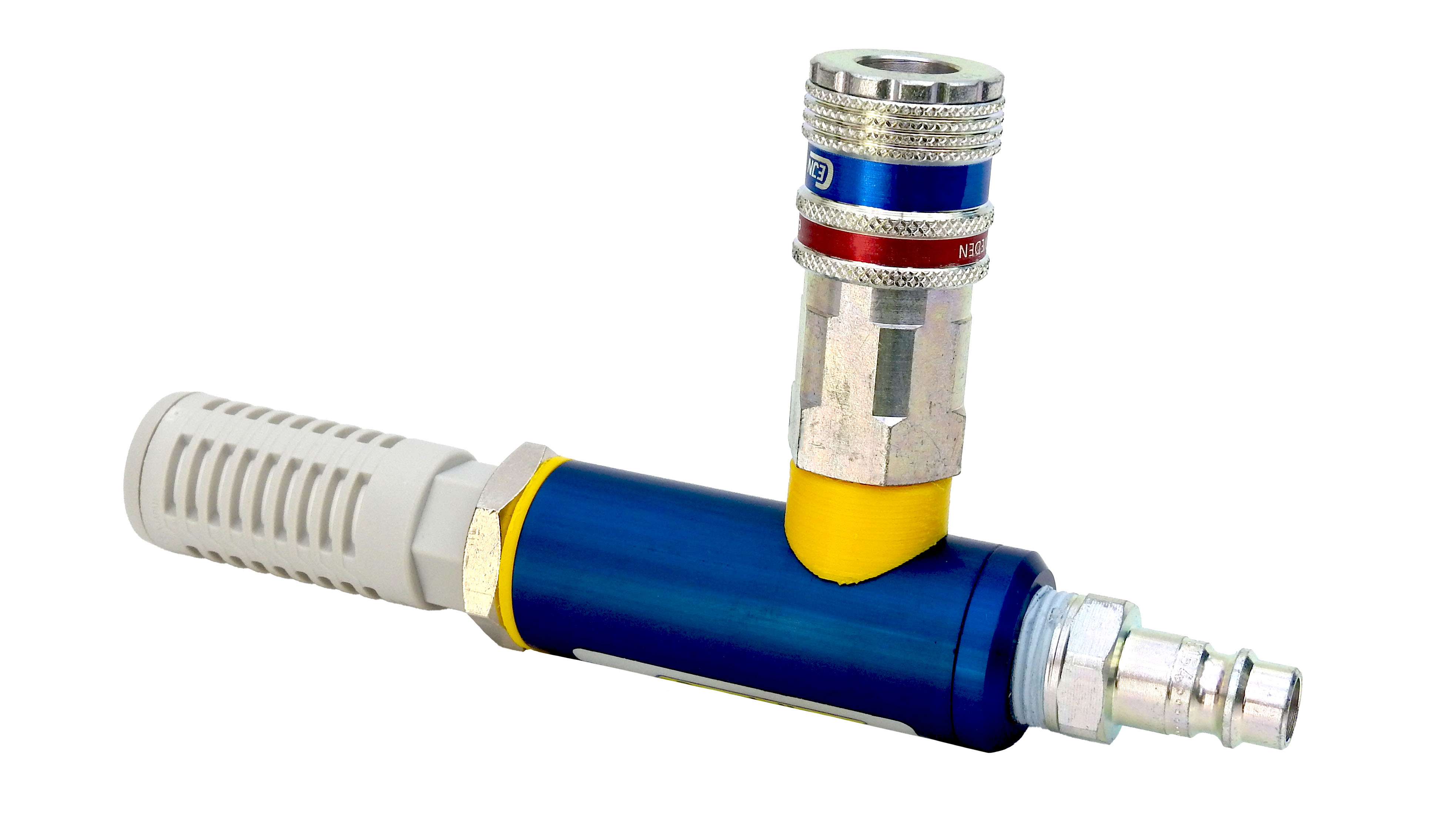

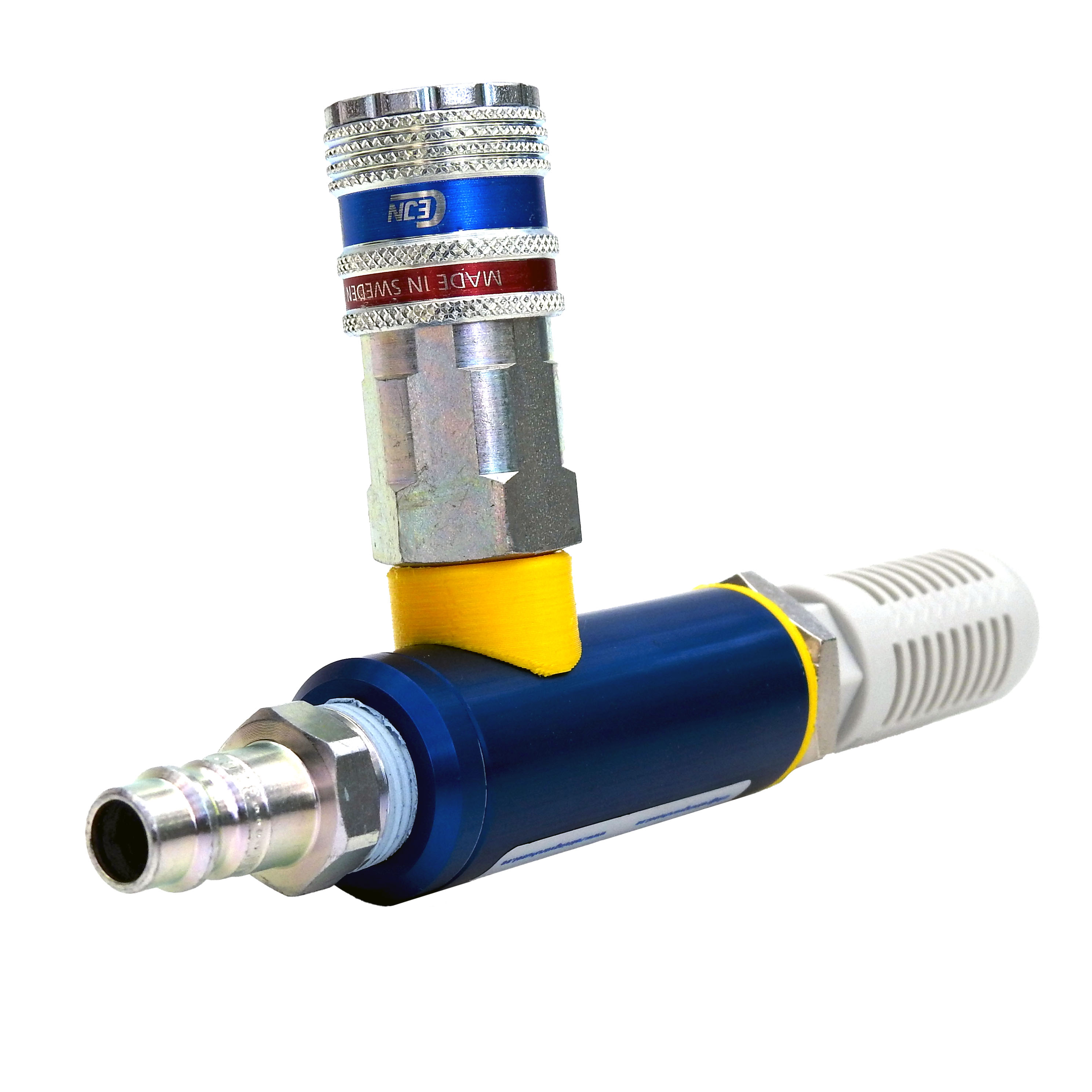

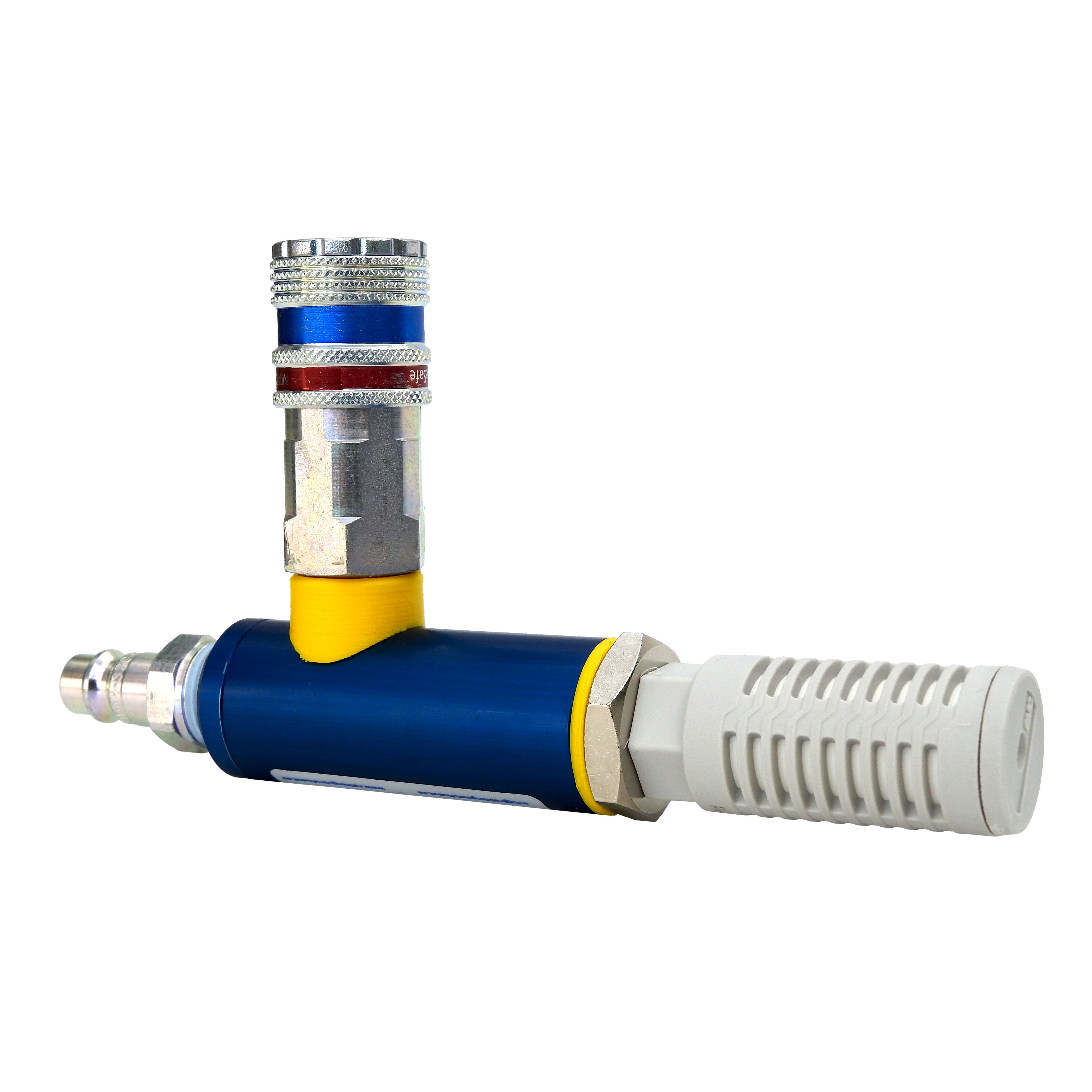

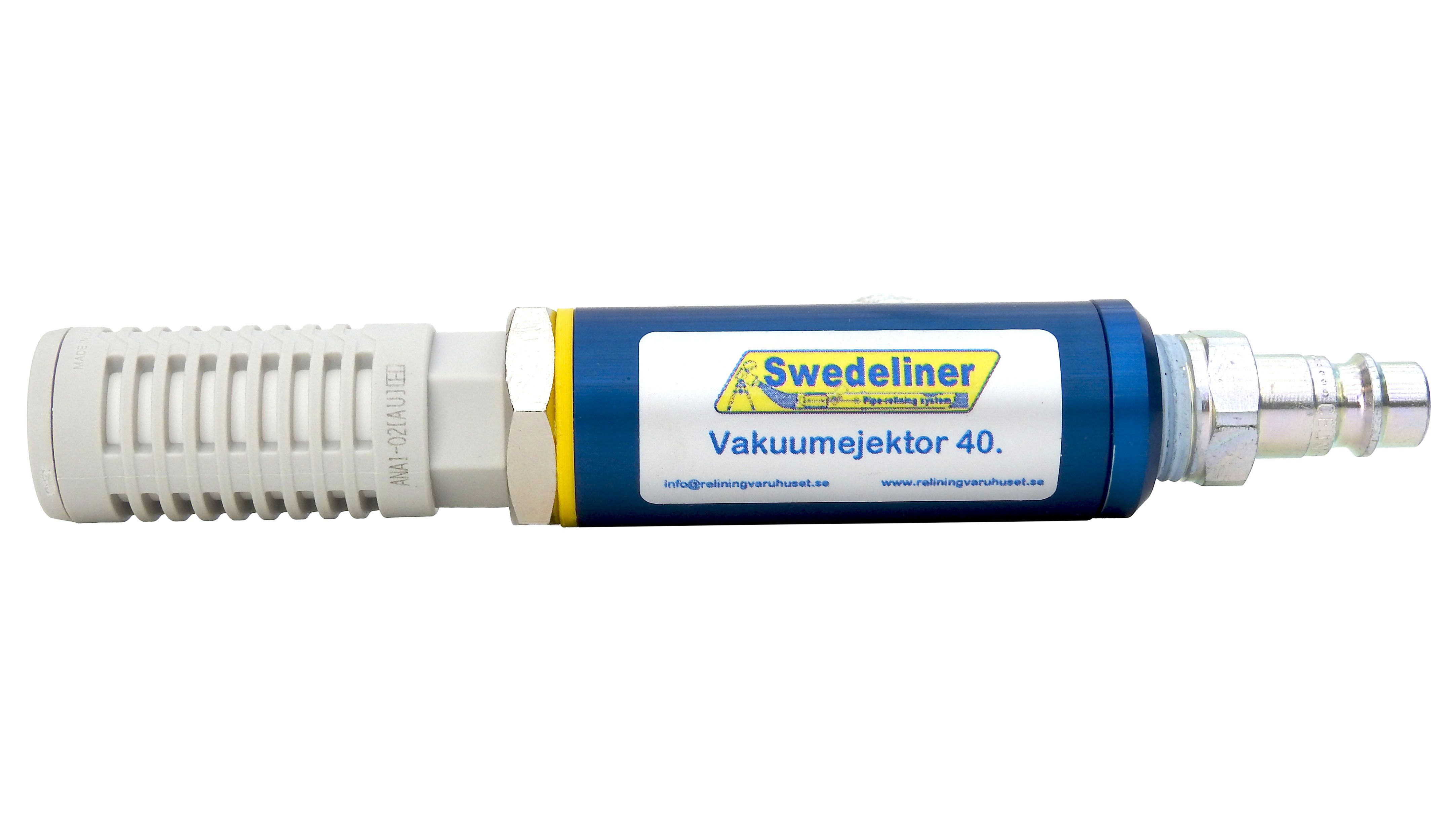

Vacuum ejector 40
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 218013140
A small and robust vacuum ejector intended for smaller objects like Lateral bladders, Packers and shorter Liners.
Made out of aluminium with an effective silencer made of plastic. To minimize the sound level.
Maximum supply pressure: 10 Bar.
Optimal supply pressure: 5,5 Bar.
Suction flow at 5,5 Bar: aprox. 46 litres/minute.
Air consumption at 5,5 Bar: aprox. 104 liters/minute.
Sound level 0,5 meter at 5,5 Bar: aprox. 60dB.
Sound level 1,0 meter at 5,5 Bar: aprox. 56dB.
Suction flow at 7 Bar: aprox. 40 litres/minute.
Air consumption at 7 Bar: aprox. 137 litres/minute.
Sound level 0,5 meter at 7 Bar: aprox. 65dB.
Sound level 1,0 meter at 7 Bar: aprox. 60dB.
Length: 156mm. (including silencer)
Diameter: 25mm.
Price per piece.
Made out of aluminium with an effective silencer made of plastic. To minimize the sound level.
Maximum supply pressure: 10 Bar.
Optimal supply pressure: 5,5 Bar.
Suction flow at 5,5 Bar: aprox. 46 litres/minute.
Air consumption at 5,5 Bar: aprox. 104 liters/minute.
Sound level 0,5 meter at 5,5 Bar: aprox. 60dB.
Sound level 1,0 meter at 5,5 Bar: aprox. 56dB.
Suction flow at 7 Bar: aprox. 40 litres/minute.
Air consumption at 7 Bar: aprox. 137 litres/minute.
Sound level 0,5 meter at 7 Bar: aprox. 65dB.
Sound level 1,0 meter at 7 Bar: aprox. 60dB.
Length: 156mm. (including silencer)
Diameter: 25mm.
Price per piece.
