Vacuum pump 76
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 218020076

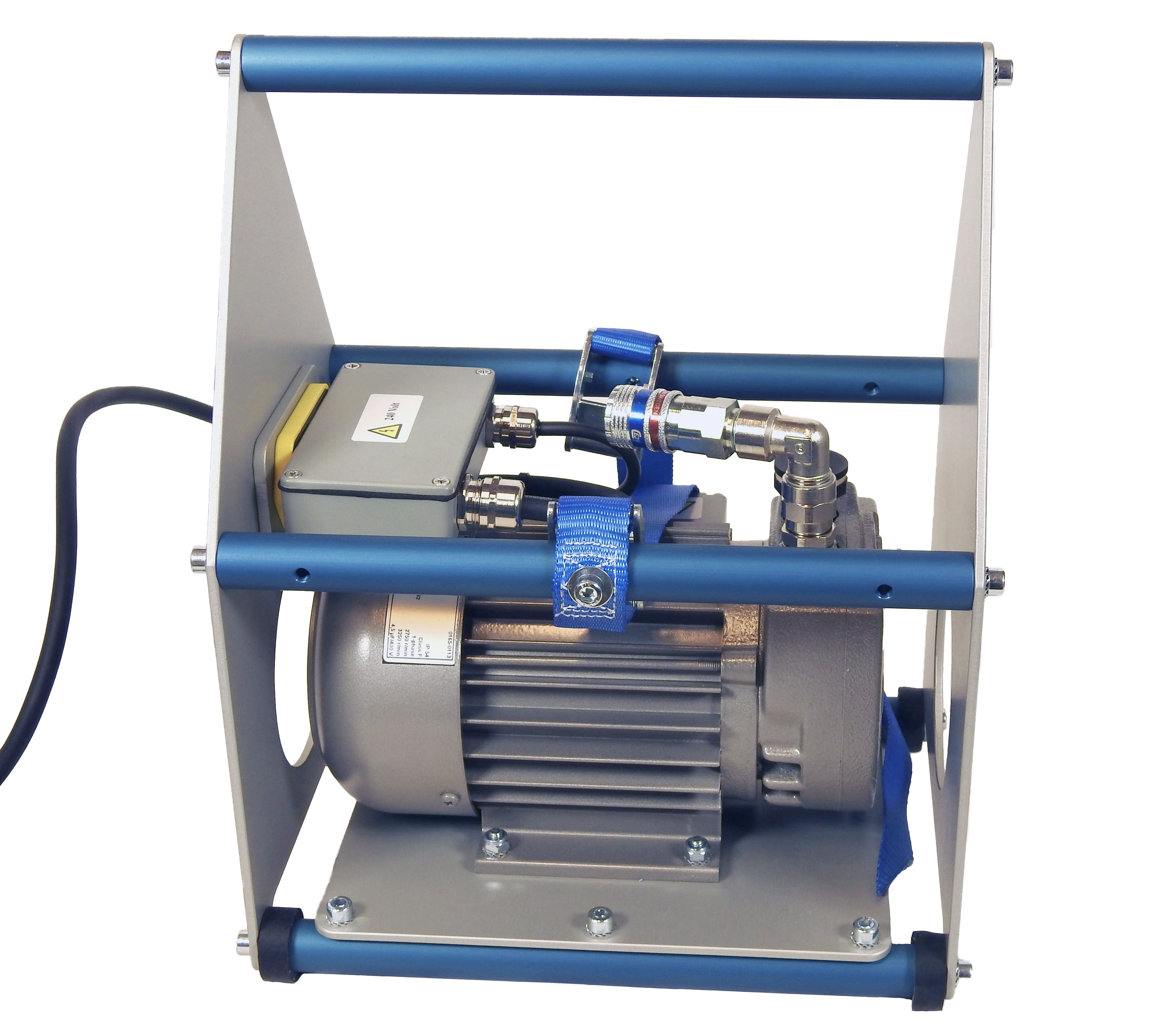

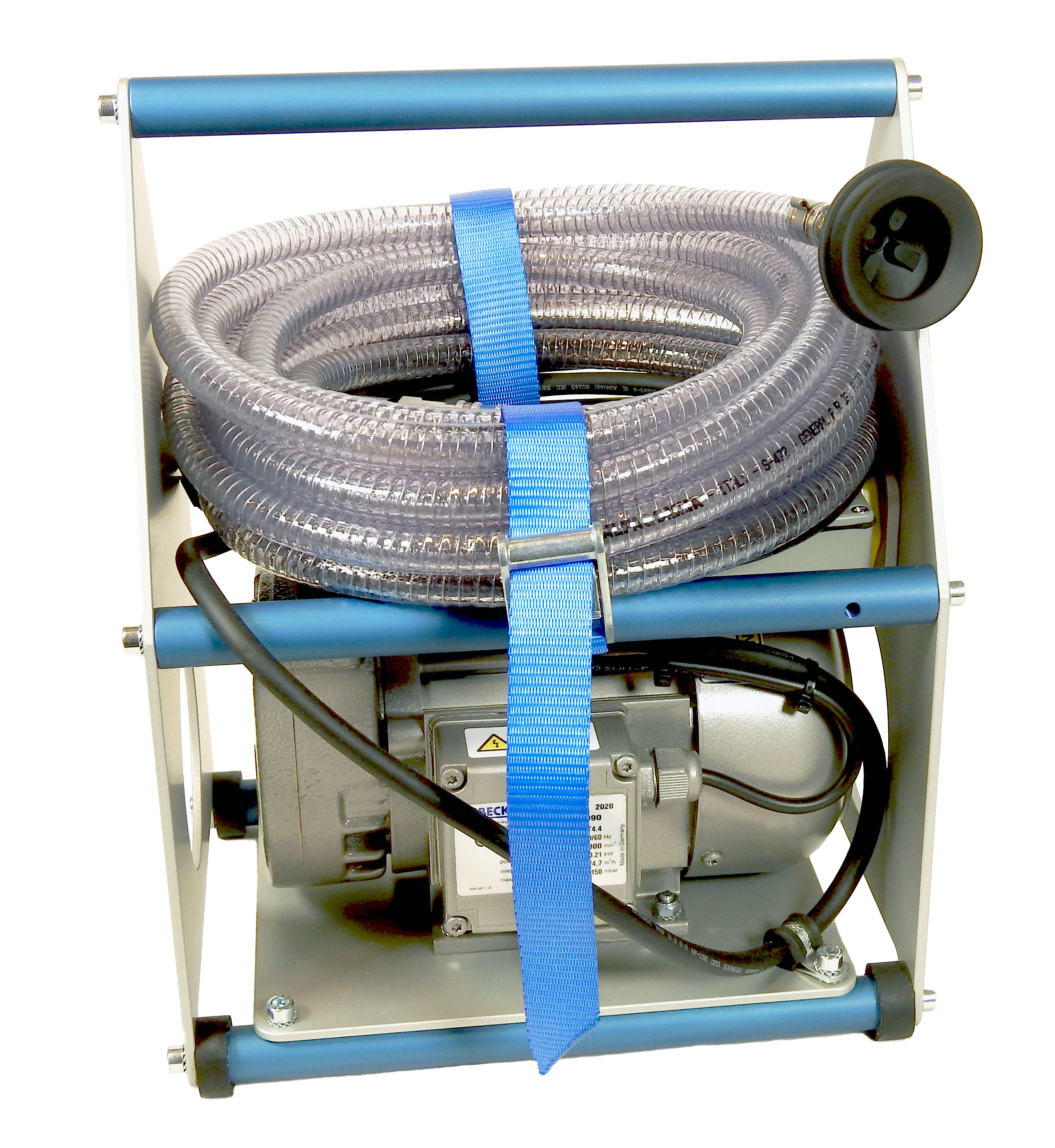

Vacuum pump 76 is an oil-free rotary vane vacuum pump designed for continuous operation, mounted in a robust stand with carrying handle.
A vacuum pump should always be used during the wet out process, to ensure a high quality of the finished liner.

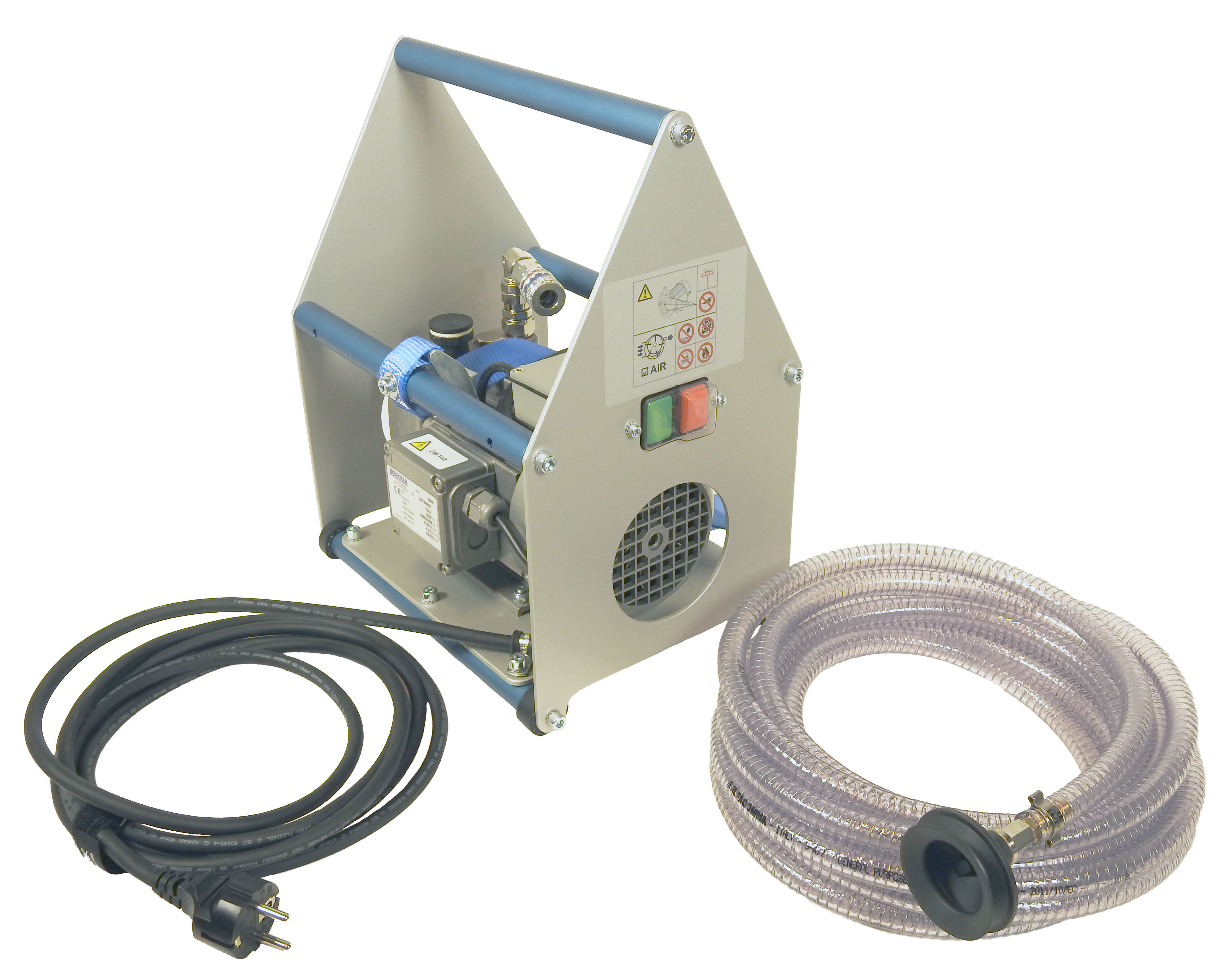

Vacuum pump 76 is supplied with the following:
6 meter (19,6 ft.) suction hose with suction pad, and 4 meter (13 ft.) power cord with plug.
Built-in dust filter on the suction side

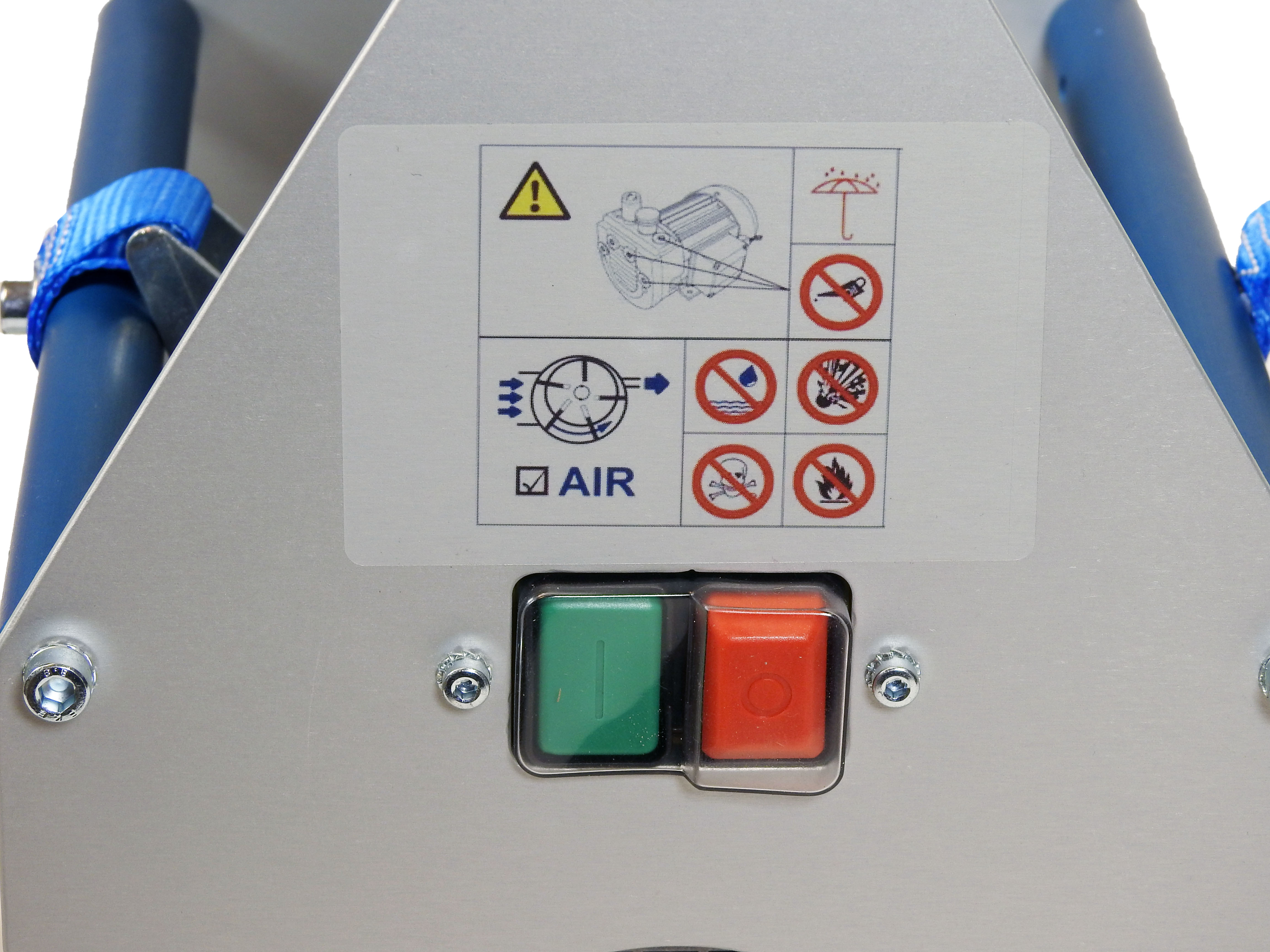

On/Off button with zero voltage switch prevents unintentional start when connecting the power.
Suction flow: approx. 7600 L/h (268.4 CF/h.)
Max. vacuum (absolute): 150 mBar. (2.17 psi.)
Max. vacuum (relative): -850 mBar. (-12.3 psi.)
Voltage: 240 Volt 50 Hz. (also available for 110 Volt 60 Hz.)
Power: 0,35 Kw.
Dimensions: 35 x 29 x 21 cm (13.8" x 11.4" x 8.3")
Weight: 14.5 kg (32 lb.)
Price per piece.
A vacuum pump should always be used during the wet out process, to ensure a high quality of the finished liner.
Vacuum pump 76 is supplied with the following:
6 meter (19,6 ft.) suction hose with suction pad, and 4 meter (13 ft.) power cord with plug.
Built-in dust filter on the suction side
On/Off button with zero voltage switch prevents unintentional start when connecting the power.
Suction flow: approx. 7600 L/h (268.4 CF/h.)
Max. vacuum (absolute): 150 mBar. (2.17 psi.)
Max. vacuum (relative): -850 mBar. (-12.3 psi.)
Voltage: 240 Volt 50 Hz. (also available for 110 Volt 60 Hz.)
Power: 0,35 Kw.
Dimensions: 35 x 29 x 21 cm (13.8" x 11.4" x 8.3")
Weight: 14.5 kg (32 lb.)
Price per piece.
