Tubegun Pocket-jet for 2" to 6"
(Optional)
(Optional)
- Do you need more information about this product? We are happy to answer your questions.
We reserve ourselfs from liability for any faulty product information, please inform us of any faults.
Description
Article no.: 204075004

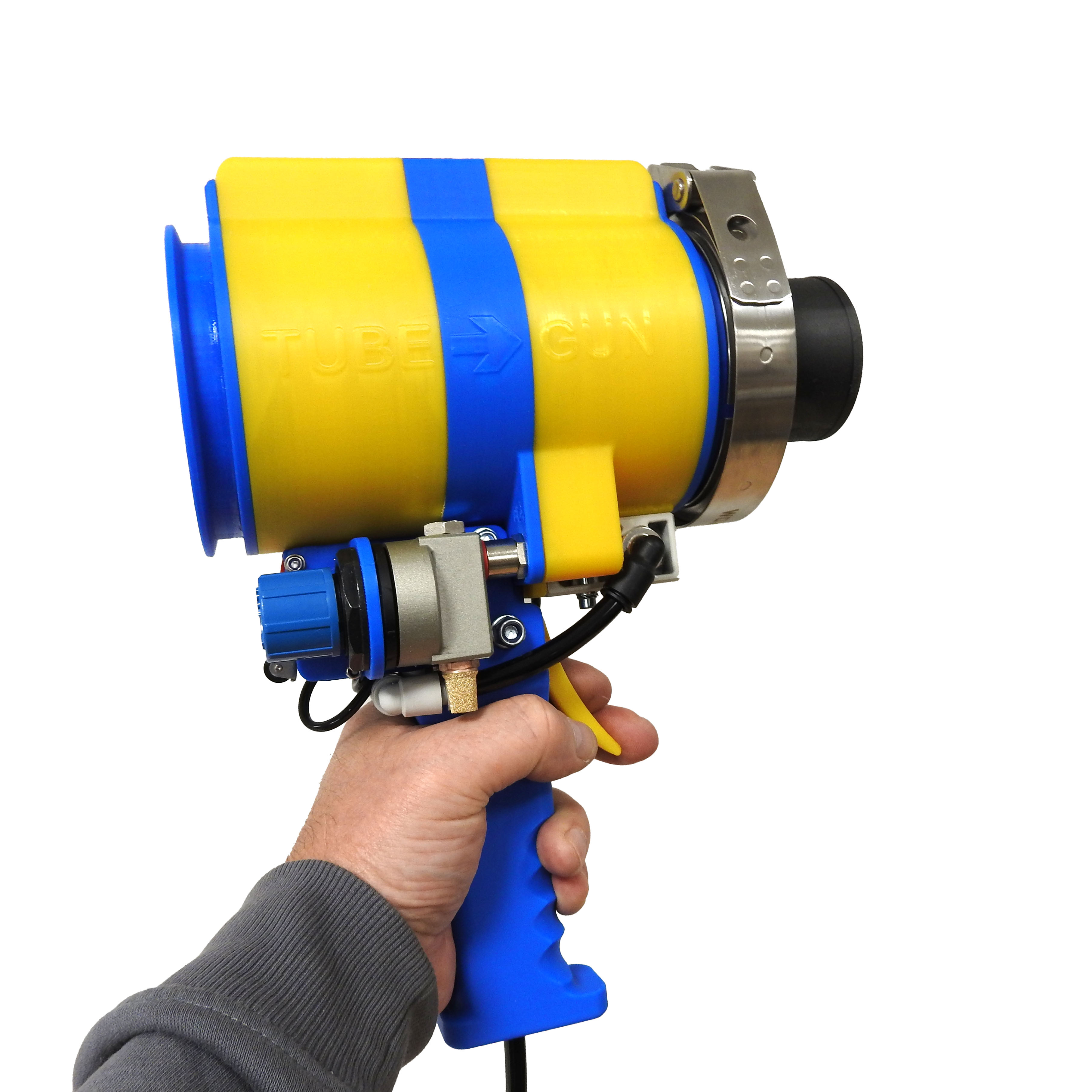

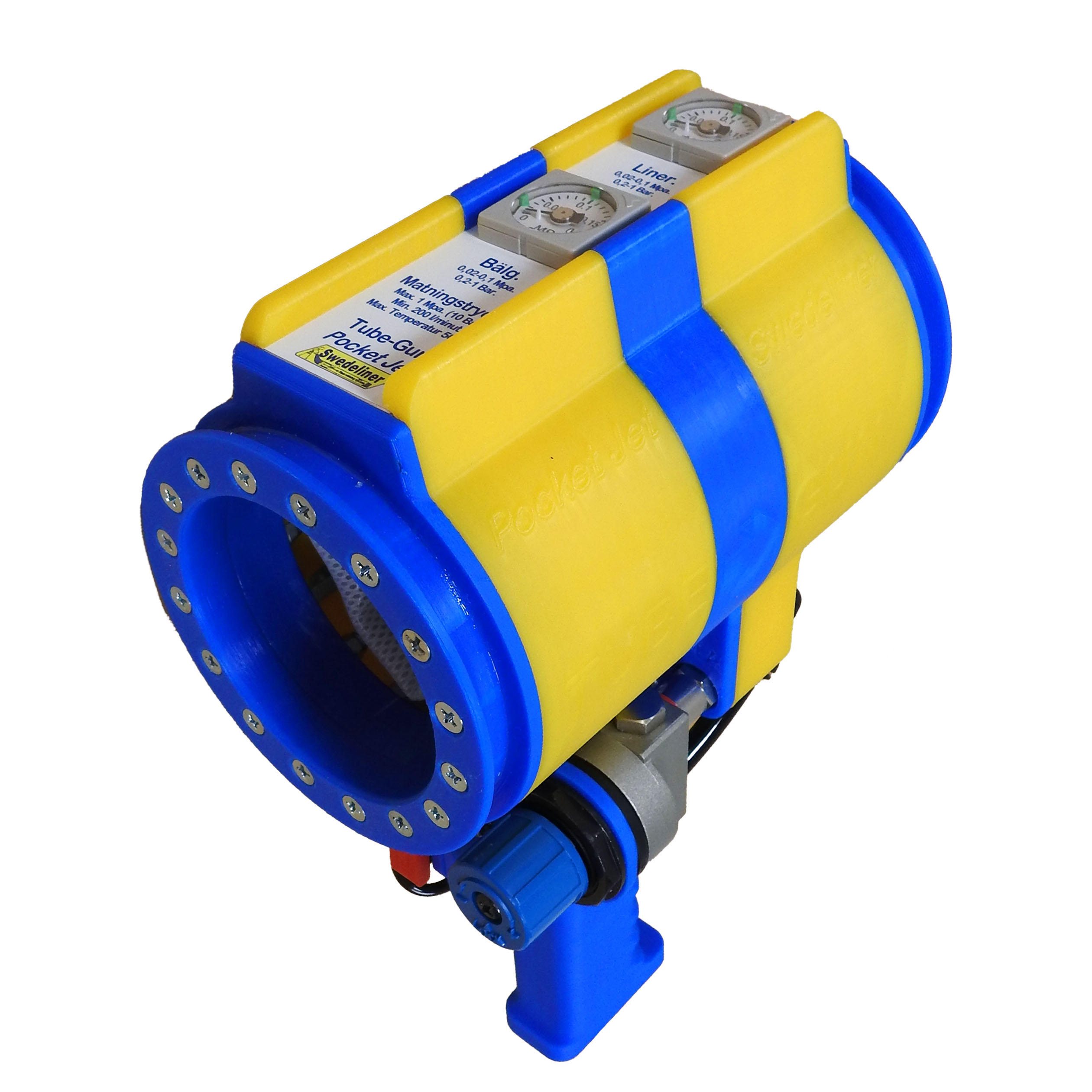

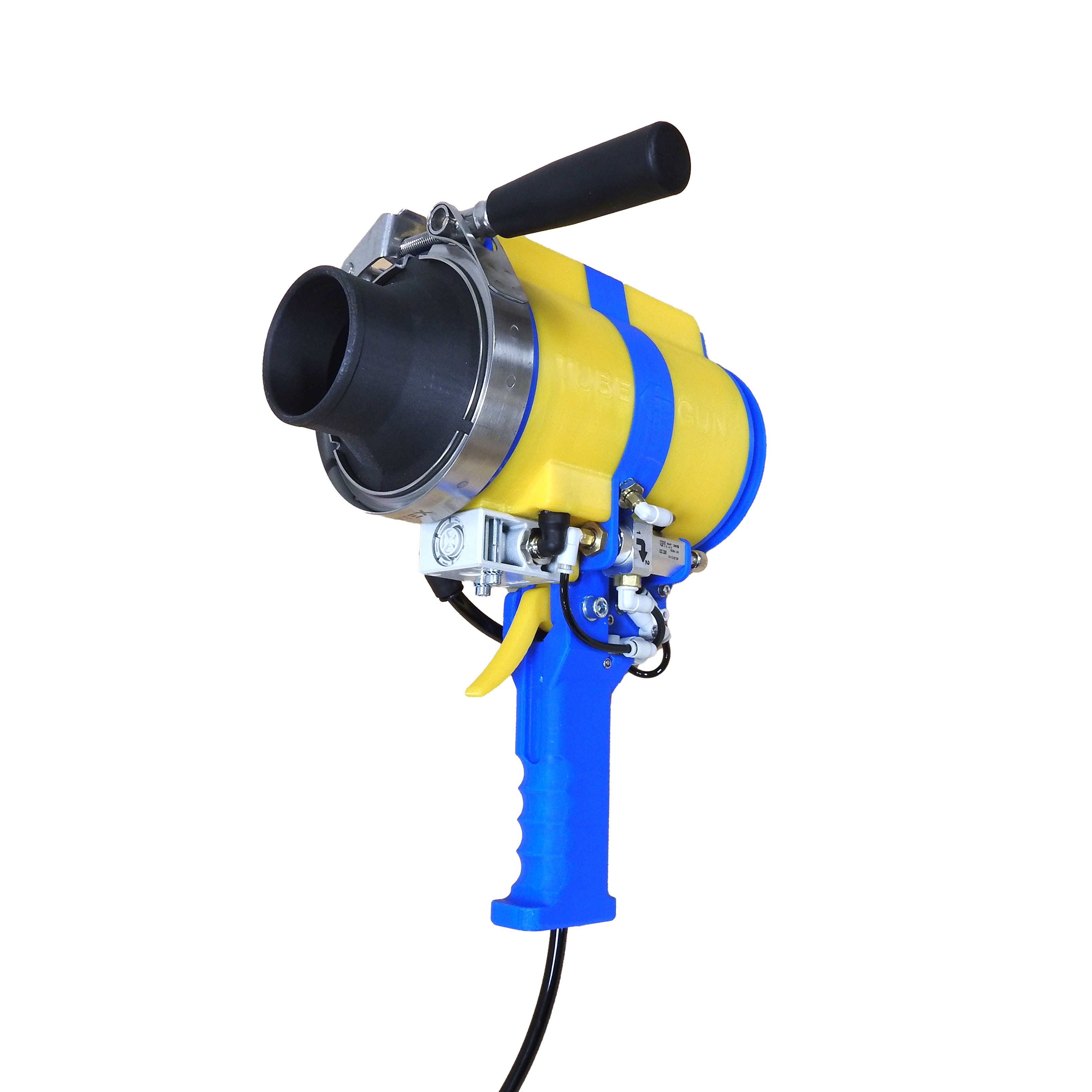

Tubegun Pocket-jet is a handheld inversion sluice that easily installs liners with dimensions 50-150mm. up to 5mm. thickness.

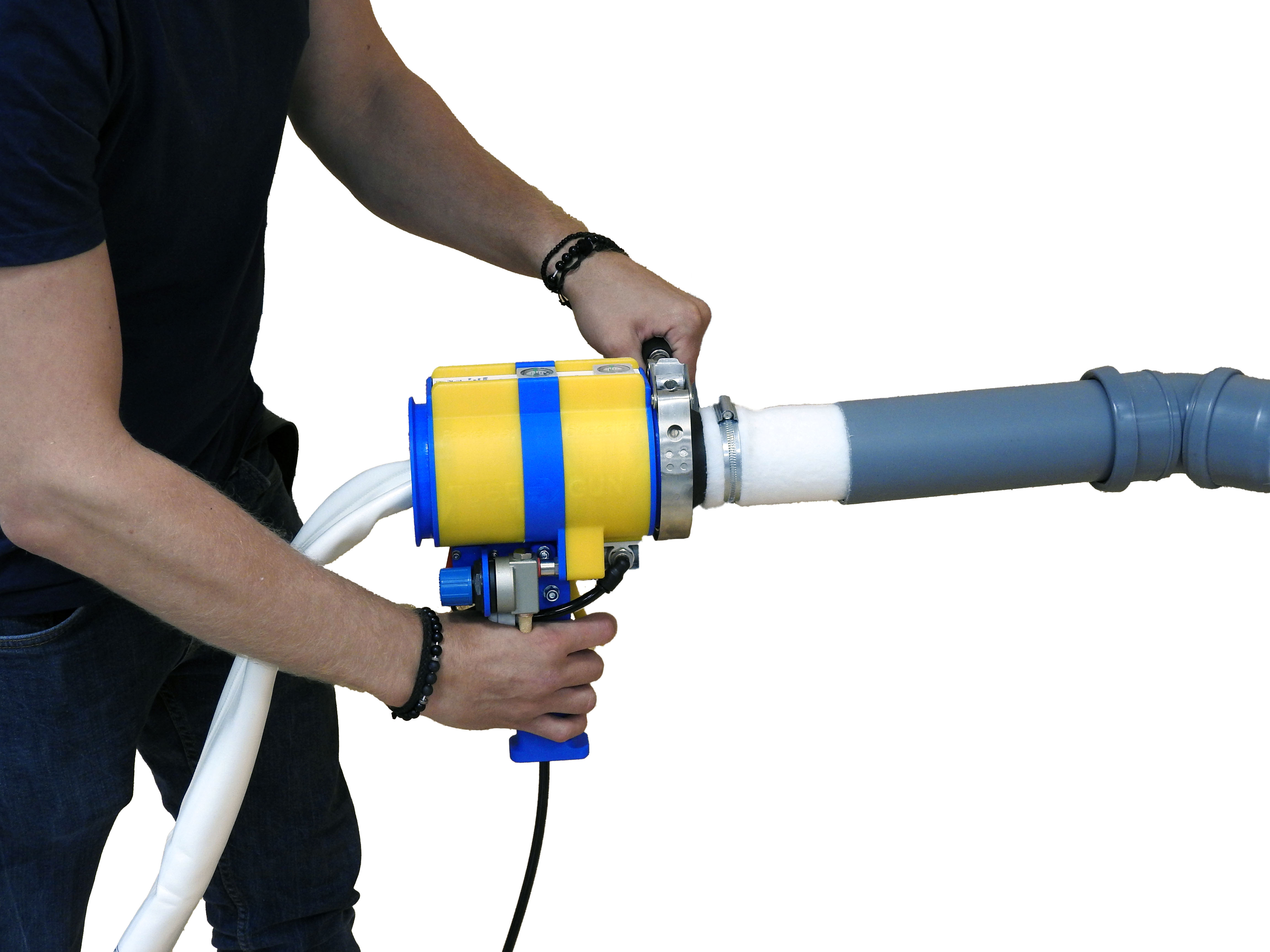

With a simple pull of the trigger, the liner is inverted into the pipeline. Tubegun Pocket-jet is mainly intended for shorter installations up to approx. 15 meters, but longer distances are possible.

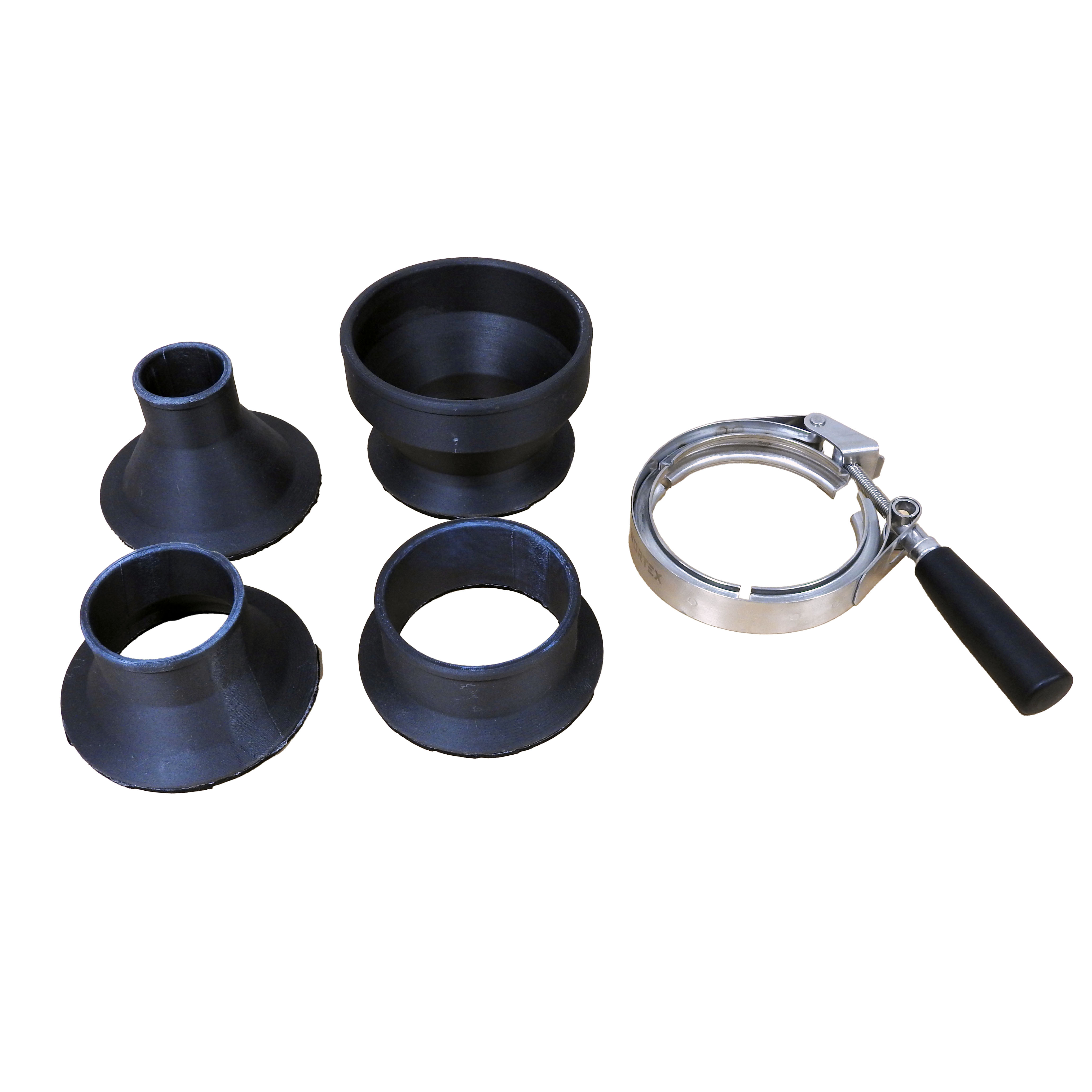

Tubegun Pocket-jet is supplied complete with inversion nozzles for DN50, DN75, DN100 and DN150mm. (2", 3", 4" and 6")

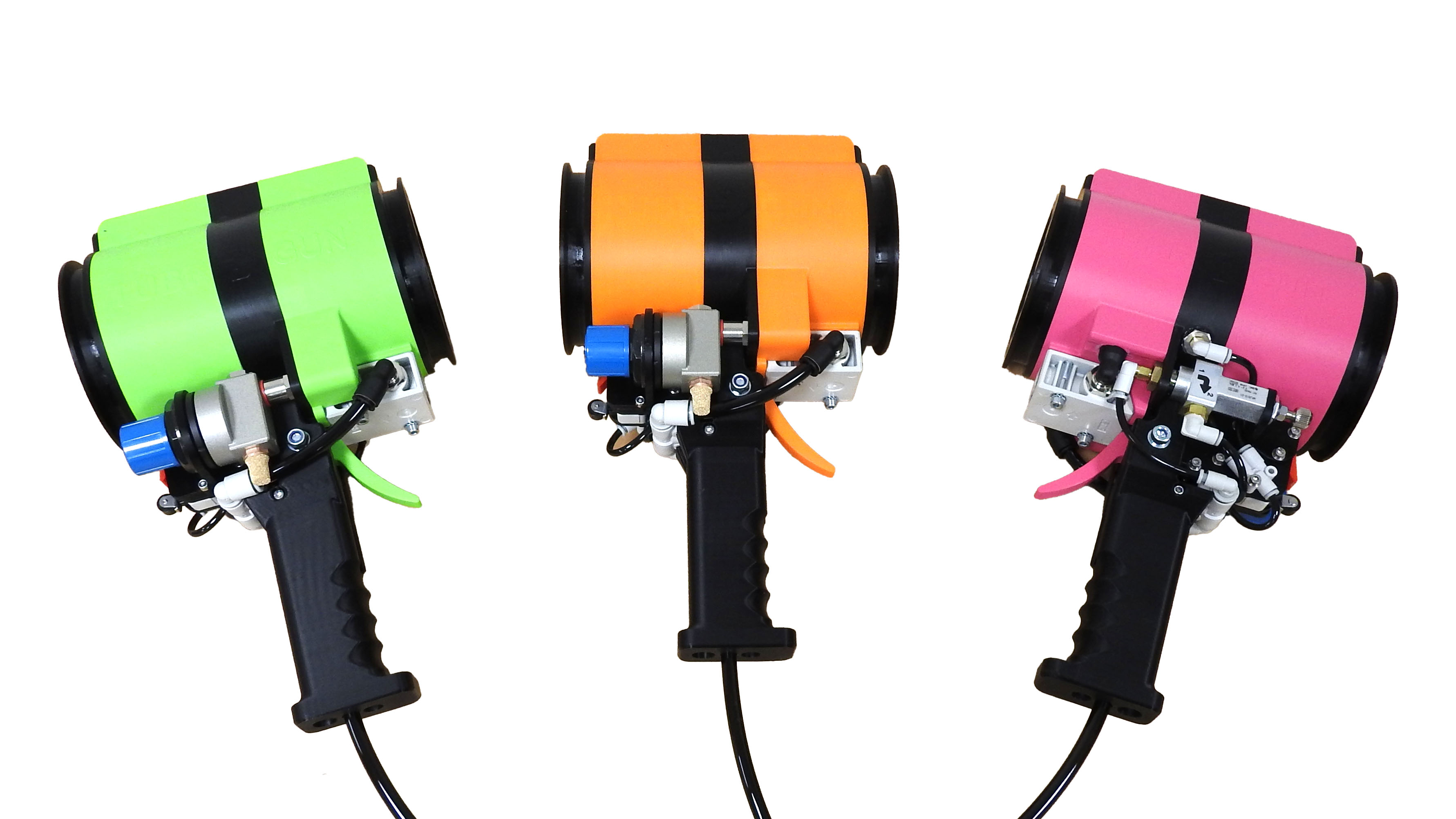

The standard colours are blue and yellow, other colour combinations can be chosed.
Air consumption: Min. 230 L/min. (8 CFM.)
Supply pressure: 4-10 Bar. (58-145 psi.)
Weight: 2,3Kg. (5 lb.)
Length: 180mm. (7") (without inversion nozzle)
Diameter: 110mm. (4,3")
Height with handle: aprox. 300mm. (aprox. 11,8")
Material: Plastic.
Max. Temperature: 45°C. (113°F)
Price per piece.
With a simple pull of the trigger, the liner is inverted into the pipeline. Tubegun Pocket-jet is mainly intended for shorter installations up to approx. 15 meters, but longer distances are possible.
Tubegun Pocket-jet is supplied complete with inversion nozzles for DN50, DN75, DN100 and DN150mm. (2", 3", 4" and 6")
The standard colours are blue and yellow, other colour combinations can be chosed.
Air consumption: Min. 230 L/min. (8 CFM.)
Supply pressure: 4-10 Bar. (58-145 psi.)
Weight: 2,3Kg. (5 lb.)
Length: 180mm. (7") (without inversion nozzle)
Diameter: 110mm. (4,3")
Height with handle: aprox. 300mm. (aprox. 11,8")
Material: Plastic.
Max. Temperature: 45°C. (113°F)
Price per piece.
